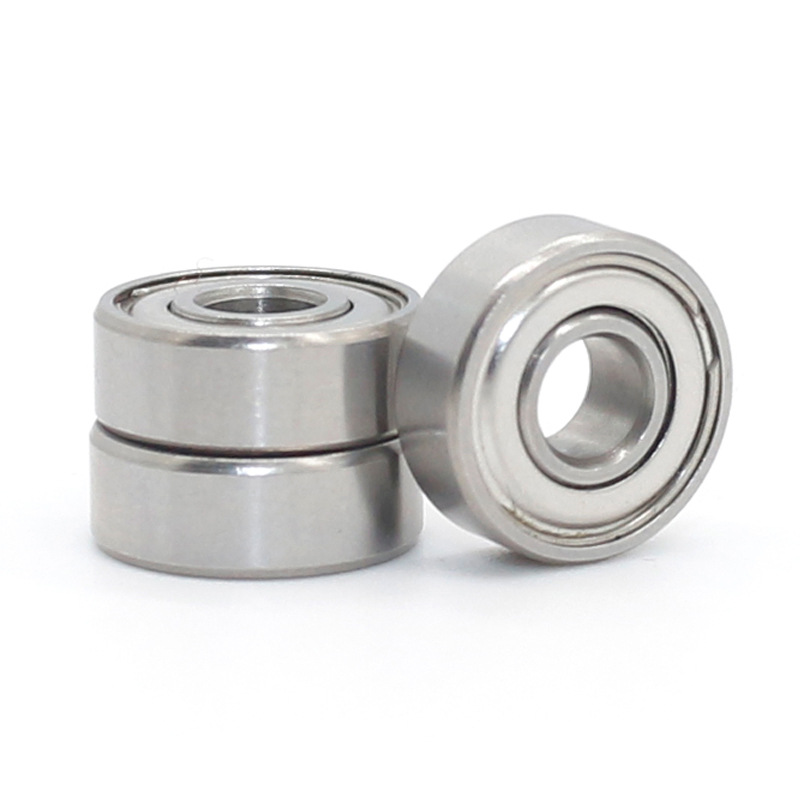

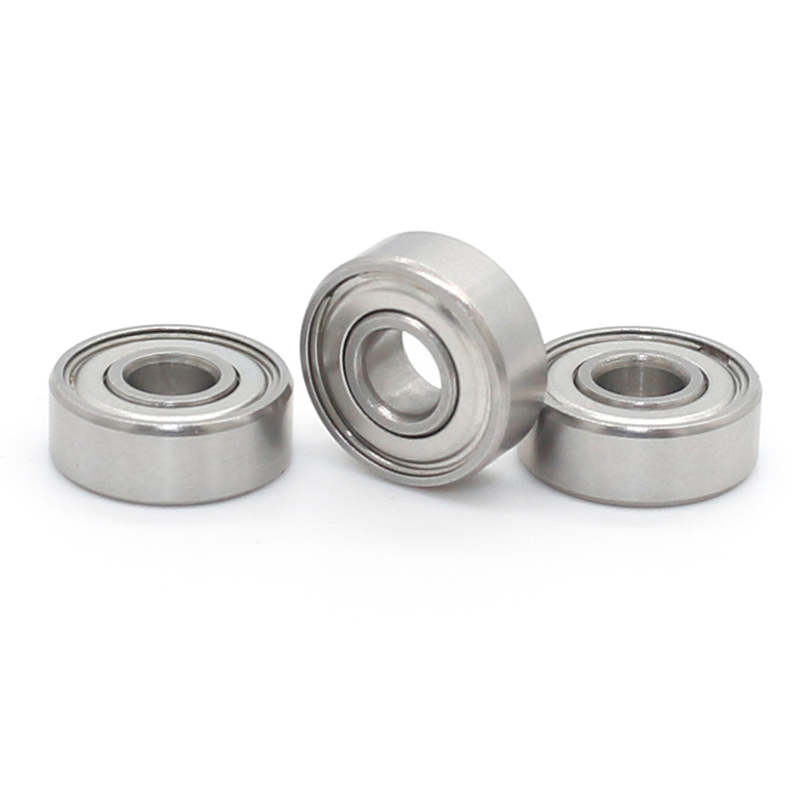

Hair dryer bearing 693ZZ
Part Number: 693-2Z
Measurement System: Metric
Ball Type: Ball
Load Direction: Radial
Structure: Single Row
Seal Type: Shielded

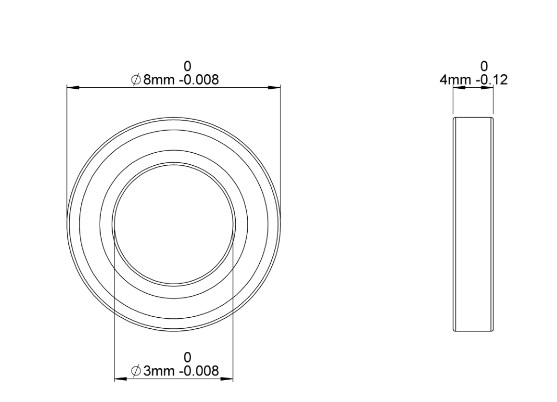

Inner Diameter: 3 mm
Inner Diameter Tolerance: -0.008mm to 0
Outer Diameter: 8 mm
Outer Diameter Tolerance: -0.008mm to 0
Width: 4 mm
Width Tolerance: -0.12mm to 0
Ring Material: Chrome Steel
Ball Material: Chrome Steel
Cage Material: 300 Series Stainless Steel
Dynamic Radial Load (Cr): 125.674000 lbf
Static Radial Load (C0r): 40.243000 lbf
Maximum Rotational Speed (X1000 revolutions per minute): 87
Lubrication: Grease(L138)
Shaft Mounting Type: Press Fit
Temperature Range: -30 °C to 120 °C
Tolerance Class: PN
Dimensional/Thermal Stability: SN(120 °C)
Radial Clearance Class: CN
Radial Clearance: 0.002mm to 0.013mm
RoHS: Compliant
Weight: 0.001000 kg
Design Features of the 693-2Z Bearing
The 693-2Z bearing has deep raceway grooves, which can effectively withstand radial and axial loads. The outer diameter of the 693-2Z bearing is 8 mm, and the inner diameter is 3 mm. Its simple and universal design provides low friction and smooth operation, making it an ideal choice for high-speed and reliable performance in various applications.
What benefits can the 693-2Z bearing bring?
Multi-purpose load capacity: It can withstand both radial and axial loads, with a wide range of applications.
High-speed performance: Specifically designed for low friction, it can achieve smooth and efficient operation at high speeds.
Durability: Even under different load conditions, its robust structure can ensure a long service life and reliability.
Reduction of noise and vibration: It can minimize the operating noise and vibration, thus creating a quieter working environment.
Easy installation: Its standard dimensions can be directly integrated into various mechanical equipment.
What can the 693-2Z bearing be used for?
Motors: Commonly found in both small and large motors, it is used to support the rotor and reduce friction.
Automotive applications: Used in components such as alternators, transmissions, and wheel hubs, it features reliable performance and durability.
Household appliances: Washing machines, refrigerators, and vacuum cleaners: Smooth and quiet operation is crucial for these devices.
Industrial machinery: Used in conveyors, pumps, and fans to ensure the effective movement and handling of materials.
Bicycles and sports equipment: Used in wheel hubs, pedals, and other components to provide smooth operation and reduce wear.
