Part Number: 6200-2Z
Dynamic Radial Load: 1214 lbf
Bearing Type: Ball Type
Static Radial Load: 531 lbf
REACH: Compliant
Measurement System: Metric System
Load Direction: Radial

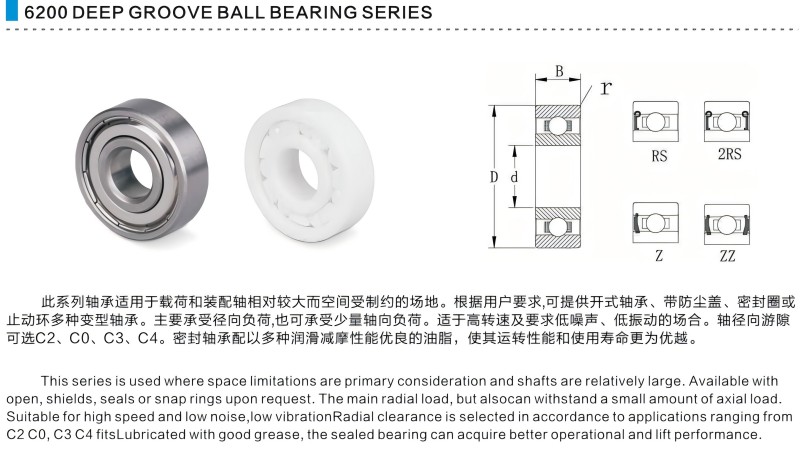

Structure: Single Row
Seal Type: Shielded

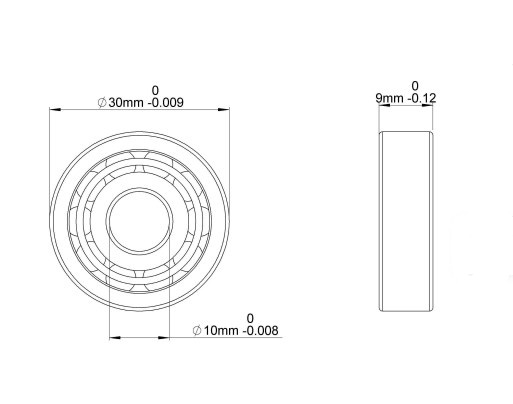

Inner Diameter: 10 mm
Inner Diameter Tolerance: -0.007 mm to 0
Outer Diameter: 30 mm
Outer Diameter Tolerance: -0.008 mm to 0
Width: 9 mm
Width Tolerance: -0.12 mm to 0
Ring Material: Chrome Steel
Ball Material: Chrome Steel
Cage Material: Stainless Steel
Maximum Rotational Speed (X1000 revolutions per minute): 28
Lubrication: Grease
Temperature Range: -30° to 120 °C
Tolerance Grade: P6
Radial Clearance Grade: CN
RoHS: Compliant
Weight: 0.034000 kg
In various transmission equipment of automated production lines, such as conveyor belt drives and robotic arm joint transmissions, the reduction motor bearing 6200ZZ can provide stable support and transmission for reduction motors, ensuring the accurate operation and efficient production of equipment.

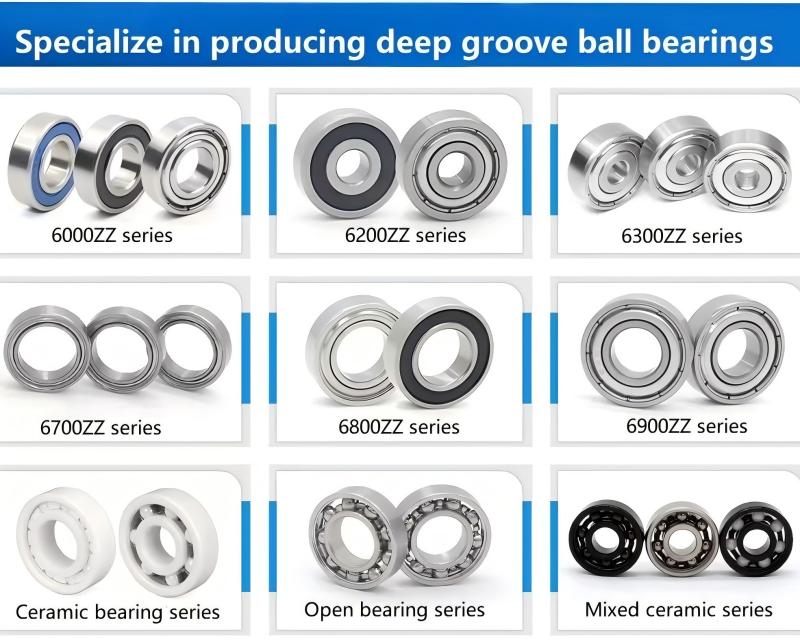

Our factory is a high-quality supplier of stainless steel deep groove ball bearings, rubber-coated pulley bearings, and industrial transmission parts. We have a complete range of bearing models and can provide free bearing samples.
Welcome to contact us at: jackengineer@blhbearing.com.
