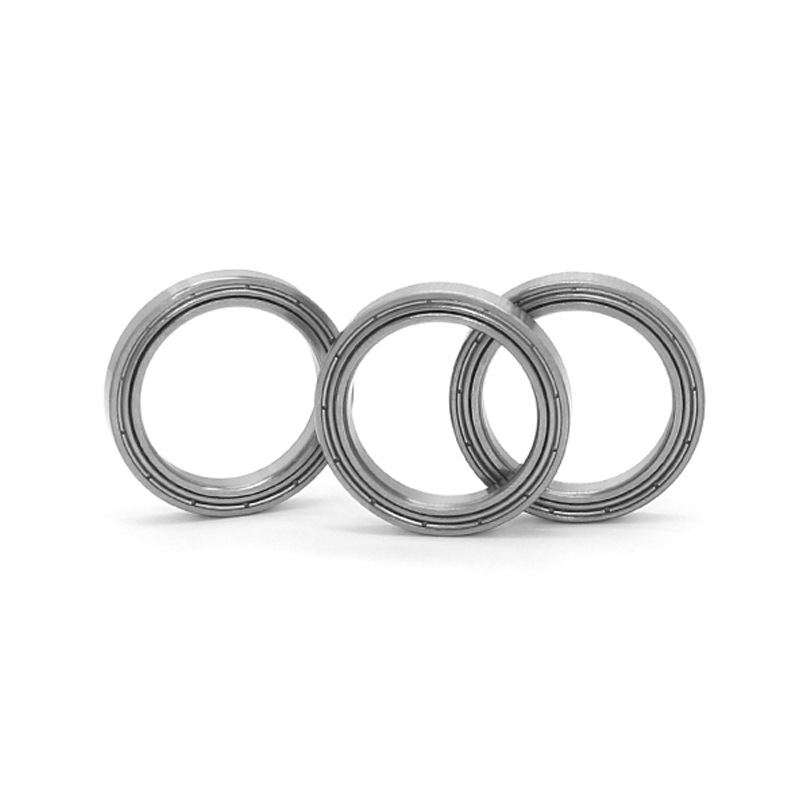

Part Number: 6704 2rs
Tolerance Grade: ABEC-1
Measurement System: Metric
Bearing Type: Ball
Load Direction: Radial
Structure: Single Row
Seal Type: Sealed

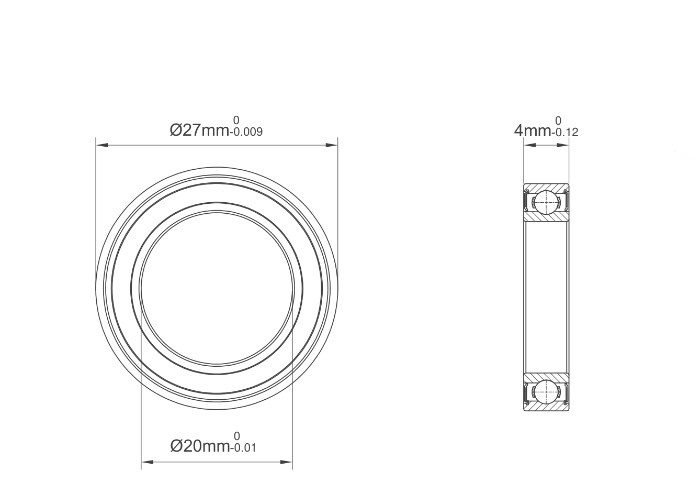

Inner Diameter: 20 mm
Inner Diameter Tolerance: -0.01mm to 0
Outer Diameter: 27 mm
Outer Diameter Tolerance: -0.009mm to 0
Width: 4 mm
Width Tolerance: -0.120mm to 0
Ring Material: Chromium Steel
Ball Material: Chromium Steel
Cage Material: Stainless Steel
Dynamic Radial Load: 227 lbf
Static Radial Load: 162 lbf
Maximum Speed (X1000 rpm): 10
Lubrication: Required
Temperature Range: -30°C to 110 °C
Radial Clearance Grade: C0
Radial Clearance: 0.006mm to 0.020mm
RoHS: Compliant
REACH: Compliant
Weight: 5.9 g
RoHS: Compliant
The intelligent monitor has certain requirements for the rotation accuracy of the lens. The 6704ZZ bearing can provide rotation accuracy that is compatible with it, ensuring that the lens can accurately position and track the target during the rotation process, and improving the quality and accuracy of the monitoring picture
