Part Number: 6000ZZ
Measurement System: Metric
Bearing Type: Ball Type
Load Direction: Radial
Structure: Single Row
Seal Type: Shielded

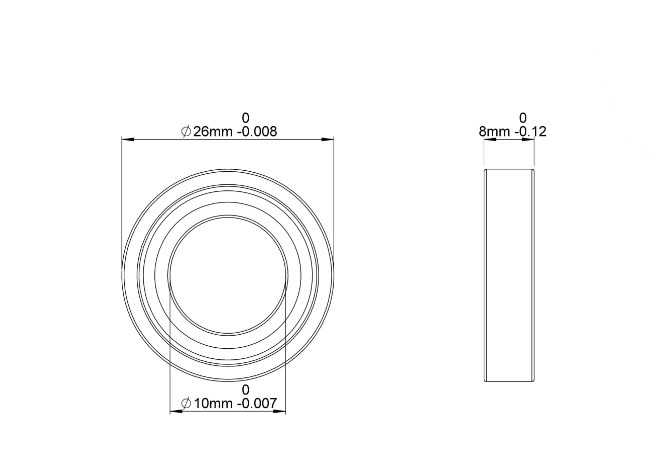

Inner Diameter: 10 mm
Inner Diameter Tolerance: -0.008 mm to 0
Outer Diameter: 26 mm
Outer Diameter Tolerance: -0.009 mm to 0
Width: 8 mm
Width Tolerance: -0.12 mm to 0
Ring Material: Chrome Steel
Ball Material: Chrome Steel
Cage Material: Steel
Dynamic Radial Load: 1023 lbf
Static Radial Load: 438 lbf
Maximum Rotational Speed (X1000 revolutions per minute): 31
Lubrication: Required
Temperature Range: -30° to 120 ℃
ABEC Grade: ABEC 1 | ISO P0
Radial Clearance Grade: C0-Medium
RoHS: Compliant
REACH: Compliant
Shaft Mounting Type: Press Fit
RoHS: Compliant
6000zz deep groove ball bearing itself has a relatively high rotational precision, and the 6000RS is no exception. It can ensure the stability of the shaft during rotation, making the equipment run more smoothly with less vibration and noise. This is very important for some equipment with high requirements for rotational precision, such as precision machine tools, motors, instruments, etc., as it can improve the processing precision and operational reliability of the equipment.

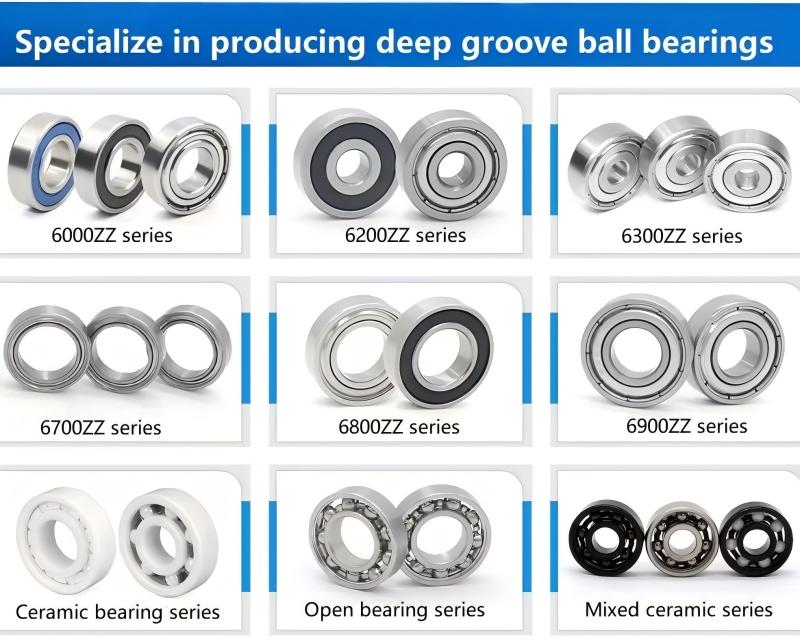

Our factory is a high-quality supplier of stainless steel deep groove ball bearings, rubber-coated pulley bearings, and industrial transmission parts. We have a complete range of bearing models and can provide free bearing samples. Welcome to contact us at:
jackengineer@blhbearing.com
