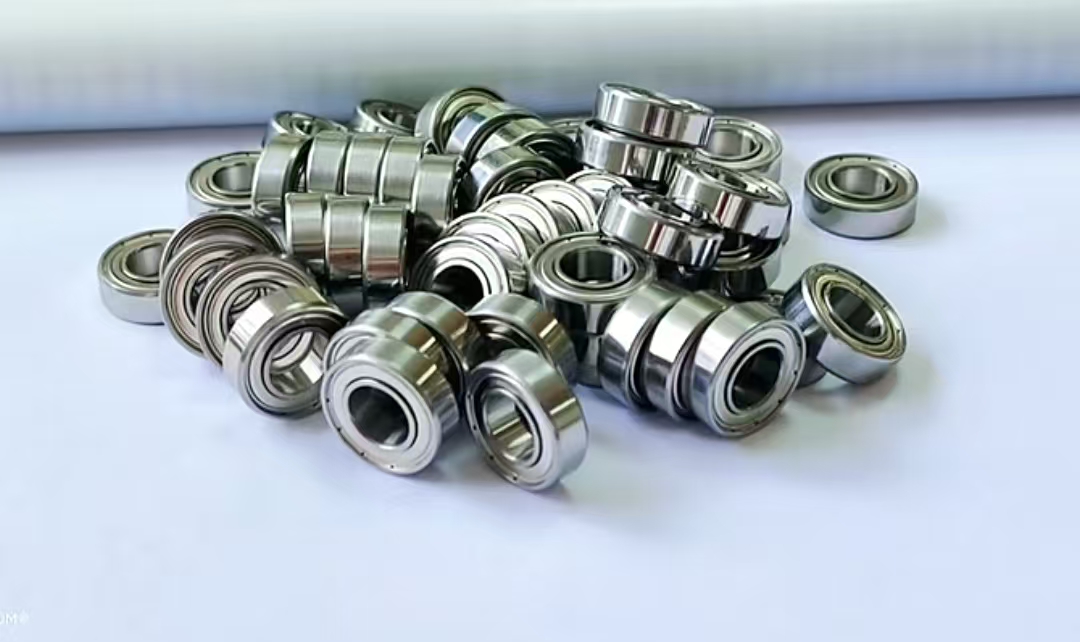

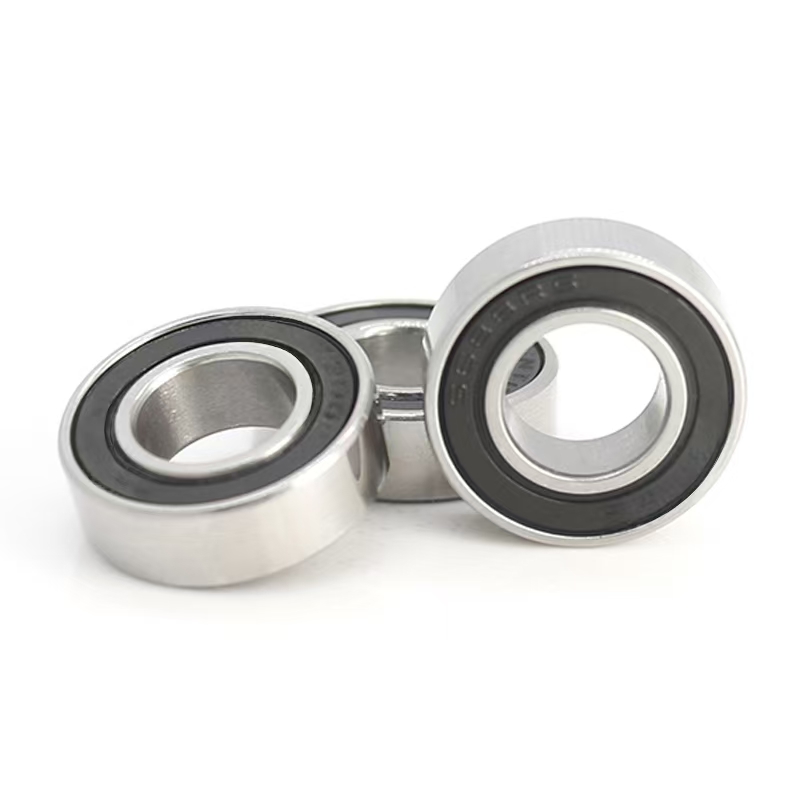

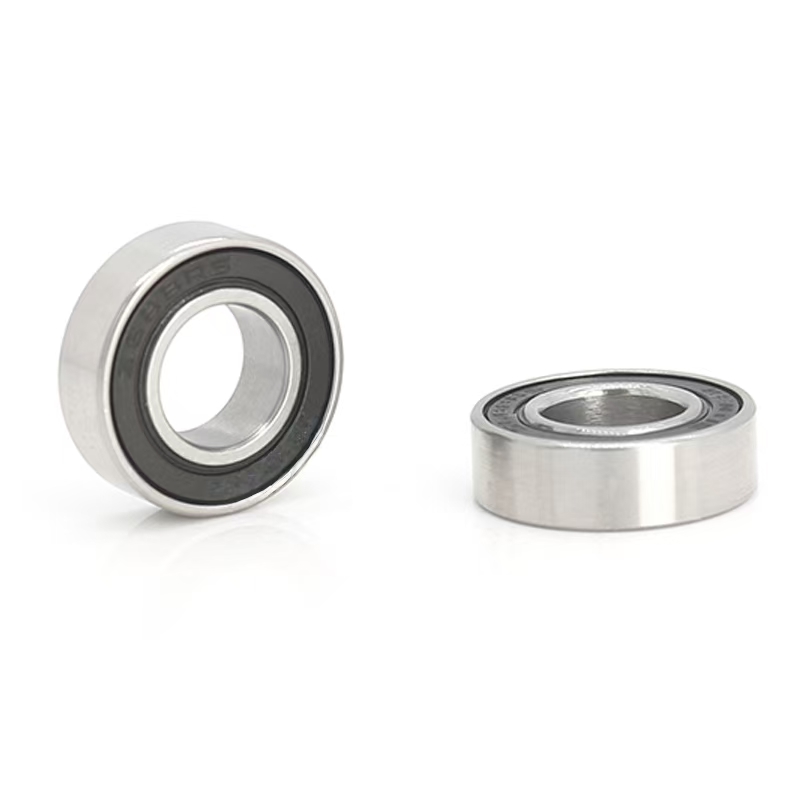

Intelligent Robot Motor Bearing 688ZZ/2RS
Part Number: 688ZZ/2RS
Measurement System: Metric
Bearing Type: Ball Type
Load Direction: Radial
Structure: Single Row
Inner Ring Type: Standard
Seal Type: Shielded

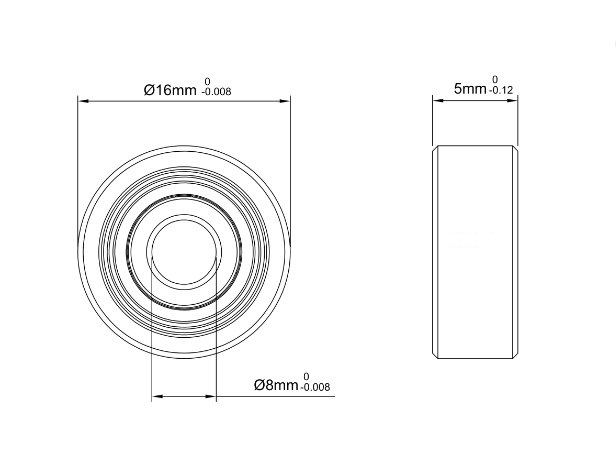

Inner Diameter: 8 mm
Inner Diameter Tolerance: -0.008mm to 0
Outer Diameter: 16 mm
Outer Diameter Tolerance: -0.008mm to 0
Width: 5 mm
Width Tolerance: -0.12mm to 0
Ring Material: Chrome Steel
Ball Material: Chrome Steel
Cage Material: 300 Series Stainless Steel
Seal Cover Material: 300 Series Stainless Steel
Dynamic Radial Load: 239 lbf
Static Radial Load: 107 lbf
Maximum Rotational Speed (X1000 revolutions per minute): 36
Lubrication: MULTEMP SRL
Shaft Mounting Type: Press Fit
Temperature Range: -30° to 110 °C
ABEC Grade: P6
Radial Clearance Grade: MC3
Radial Clearance: 0.002mm to 0.013mm
RoHS: Compliant
REACH: Compliant
Ball Diameter: 2 mm
Number of Balls: 10
Weight: 4.05 g
In the working process of intelligent robots, the motor bearings need to withstand frequent starting, stopping, and speed changes. The 688RS bearing has good wear resistance and fatigue resistance, and can maintain stable performance in long-term use, improving the reliability and service life of robots
Our factory is a specialized custom factory for special bearings. We are professional in manufacturing high-quality stainless steel deep groove ball bearings that meet strict requirements. We are also a reliable supplier of rubber-coated pulley bearings and industrial transmission parts. We have a complete range of bearing models and can provide bearing samples free of charge.
