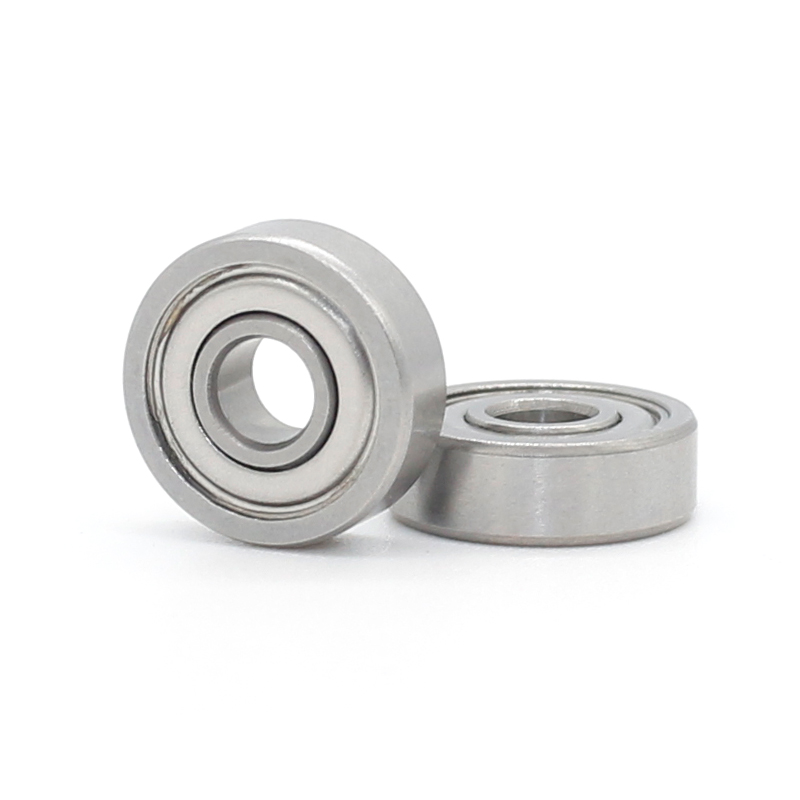

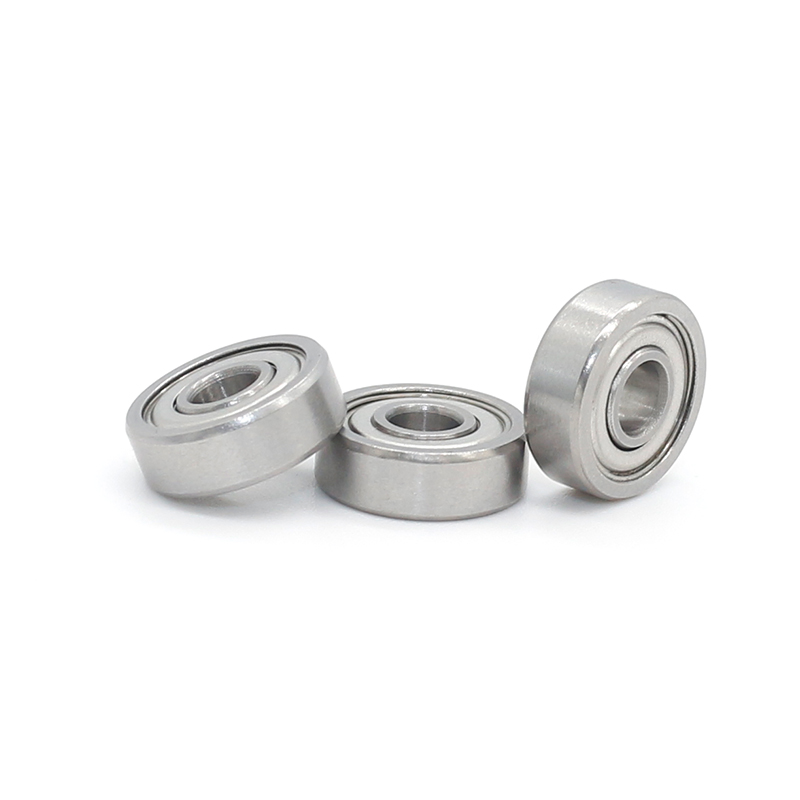

Helical Planetary Reducer Bearing 604ZZ
Part Number: 604-ZZ
Measurement System: Metric
Bearing Type: Ball Type
Load Direction: Radial
Structure: Single Row
Seal Type: Shielded

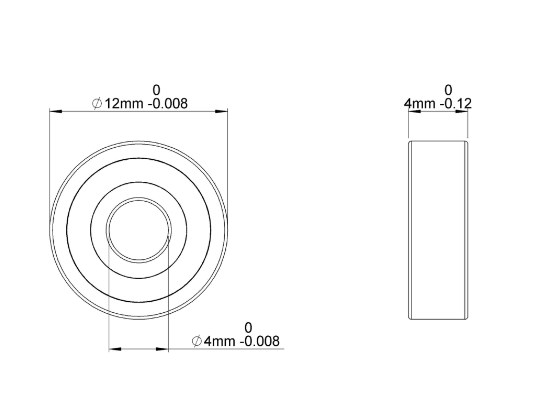

Inner Diameter: 4 mm
Inner Diameter Tolerance: -0.008mm to 0
Outer Diameter: 12 mm
Outer Diameter Tolerance: -0.008mm to 0
Width: 4 mm
Width Tolerance: -0.12mm to 0
Ring Material: Chrome Steel
Ball Material: Chrome Steel
Cage Material: 300 Series Stainless Steel
Dynamic Radial Load: 225 lbf
Static Radial Load: 79 lbf
Maximum Rotational Speed (X1000 revolutions per minute): 57
Lubrication: Grease
Temperature Range: -30° to 120 °C
ABEC Grade: P0
RoHS: Compliant
REACH: Compliant

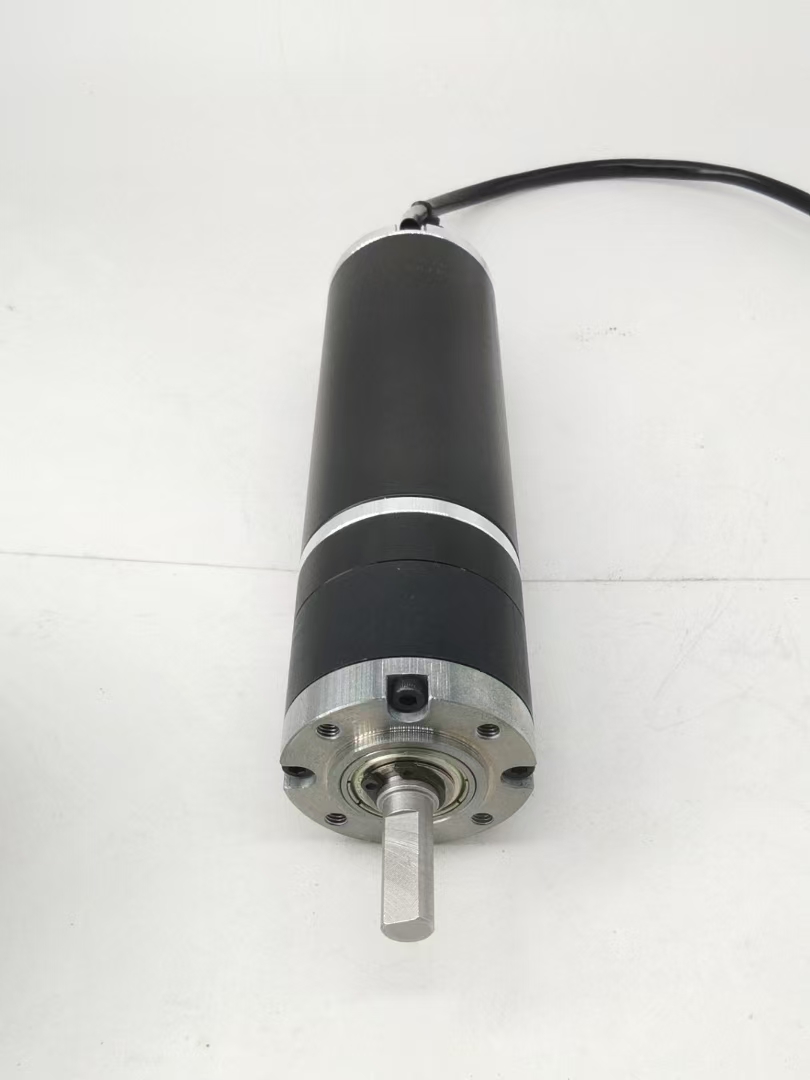

The deep groove ball bearing 604ZZ has advantages such as a small friction coefficient, a high limiting rotational speed, a simple structure, and low cost. It can withstand a certain amount of radial load and a small amount of axial load, and is suitable for occasions with high noise requirements and high rotational speeds. It is commonly used in parts such as the input shaft or output shaft of 42 super-silent helical planetary gear reducers
Our factory is a specialized custom factory for special bearings. We are professional in manufacturing high-quality stainless steel deep groove ball bearings that meet strict requirements. We are also a reliable supplier of rubber-coated pulley bearings and industrial transmission parts. We have a complete range of bearing models and can provide bearing samples free of charge.
