What is the function of the rubber O-ring on the outer ring of a bearing?

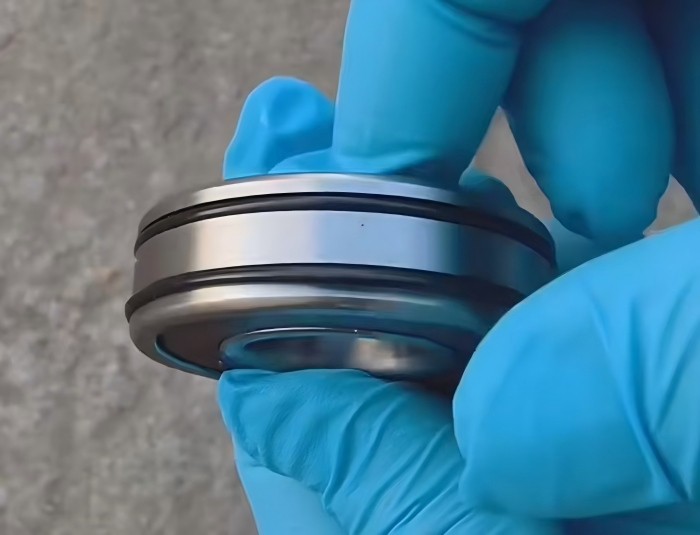

ceramic ball bearing

Adding two O-rings primarily prevents the bearing from "running off the outer ring" during high-speed operation, making it particularly suitable for equipment operating at instantaneous high speeds. It also simultaneously improves dust and water resistance. This is a key design feature of custom-made deep groove ball bearings.

The rubber O-ring design on the outer ring of the ball bearing is crucial for anti-slip and dustproofing in high-speed transmission equipment, and is suitable for various bearing applications.

In the field of mechanical transmission equipment, the stable operation of ball bearings directly determines the lifespan and efficiency of the entire machine. The rubber O-ring on the outer ring of the ball bearing, though seemingly small, plays an indispensable role. Many people wonder what its function is. The answer is actually quite straightforward-its core purpose is to prevent the bearing from "running out of its outer ring." This function is particularly evident in equipment that instantly reaches high speeds. This bearing outer ring design is also called the bearing retaining ring design and the bearing retaining groove design.

For deep groove ball bearings, the grooved outer ring and double anti-slip ring design have long been key solutions for improving performance in the industry, while adding two O-rings is a core design highlight of customized deep groove ball bearings. This functional design effectively solves the "outer ring slippage" problem during high-speed operation. It also provides multiple layers of protection against dust, water, and mud, allowing the bearing to maintain stable high-speed load-bearing capacity even under complex operating conditions. This design concept is also applicable to various types of bearing products.

UC bearings, widely used in agricultural machinery and logistics equipment, are particularly effective in preventing "outer ring slippage" even in high-frequency vibration environments, especially when paired with rubber O-rings. They also protect against dust and moisture intrusion. Ceramic ball bearings, with their high-temperature resistance and low friction, are commonly found in precision instruments and high-speed motors. The O-ring design further enhances their stability at high speeds, making their dustproof, waterproof, and sediment-proof properties better suited to the requirements of precision equipment. This type of design performs particularly well in underwater and marine applications.

Skate bearings are essential components of extreme sports equipment. The instantaneous acceleration and high-speed gliding place extremely high demands on the anti-slip properties of the bearings. Rubber O-rings can firmly fix the outer ring, preventing displacement caused by violent movements, while also blocking mud, sand, and rainwater from the skateboard when it comes into contact with the outdoors. Stainless steel miniature bearings are widely used in electronic devices, medical devices, motors, and other small instruments. The compact O-ring design does not affect the installation space, but plays a crucial anti-slip role during high-speed rotation and can also prevent fine dust from entering the rolling interior of the bearing.

Plastic bearings are inherently corrosion-resistant and lightweight. When paired with O-rings, they not only prevent "outer ring slippage" in humid and wet environments such as chemical equipment bearings, sweeper bearings, and bathroom bearings, but also improve the overall sealing and waterproofing effect, extending the bearing's service life. Puller bearings are commonly used in mechanical processing for tension joints and traction equipment bearings. In high-frequency reciprocating motion and instantaneous speed changes, where anti-slip requirements are stringent, the double protection of O-rings increases damping and makes them more reliable during high-intensity work.

Pillow bearings are widely used in heavy-duty applications such as large machine tools, printing equipment, warehouse palletizers, and large cleaning equipment. The outer O-ring design solves the problem of anti-slip during high-speed operation and resists iron filings and cutting fluid in the processing environment, ensuring smooth bearing rotation. Lazy susan bearings are basic components of various rotating machinery, from general-purpose machinery to special-purpose customized equipment. The O-ring provides multiple protections such as anti-slip, shock absorption, dustproof, and waterproof, allowing them to perform stably under different speed requirements. For example, well-known brands such as Koyo Bearing, NTN Bearing, FAG Bearing, and INA Bearing also use similar double-groove O-ring designs in some of their deep groove ball bearings. With the brand's consistent precision manufacturing process, their anti-slip and sealing performance is even more superior, making them the preferred component for high-speed equipment.

Whether it's skate bearings pursuing extreme performance, miniature bearings requiring precision protection, pillow bearings suitable for heavy-duty scenarios, or renowned brands like Koyo and SKF bearings emphasizing brand quality, the design of a double-groove outer ring with a rubber O-ring allows for a wider range of applications and more stable operation. Choosing bearings with a double-groove outer ring and O-ring design not only solves the core pain point of "running on the outer ring," but also reduces equipment maintenance costs and improves overall machine operating efficiency through upgraded dust and water resistance. This is a crucial detail that cannot be ignored when selecting various types of mechanical equipment.

BLH Bearing Factory manufactures many models of bearings with double-groove outer rings and O-rings. We can machine double grooves on the outer ring for all bearing models. If you also have plans to customize bearings, please contact us. Thank you.

Stainless steel bearings with double grooved outer rings, retaining ring bearings, retaining groove bearings, custom bearing outer ring models.

The rubber O-ring design on the outer ring of the ball bearing is crucial for anti-slip and dustproofing in high-speed transmission equipment, and is suitable for various bearing applications.
