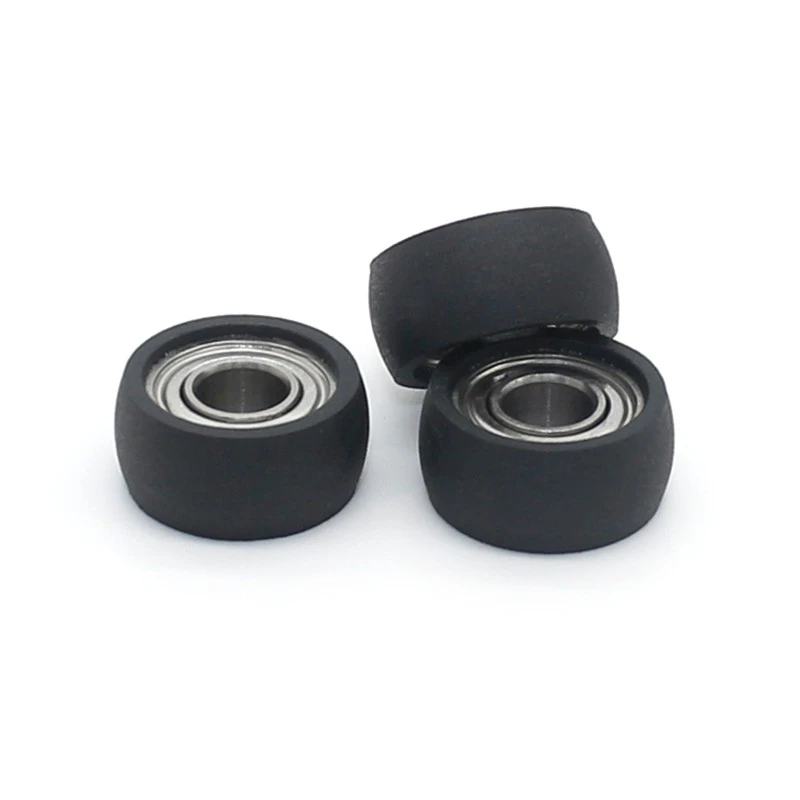

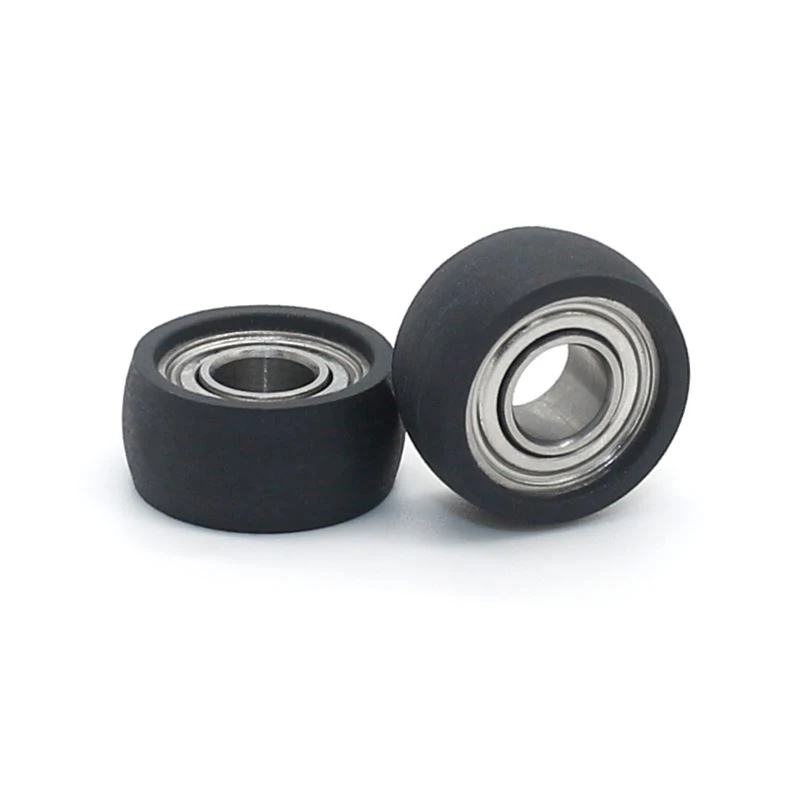

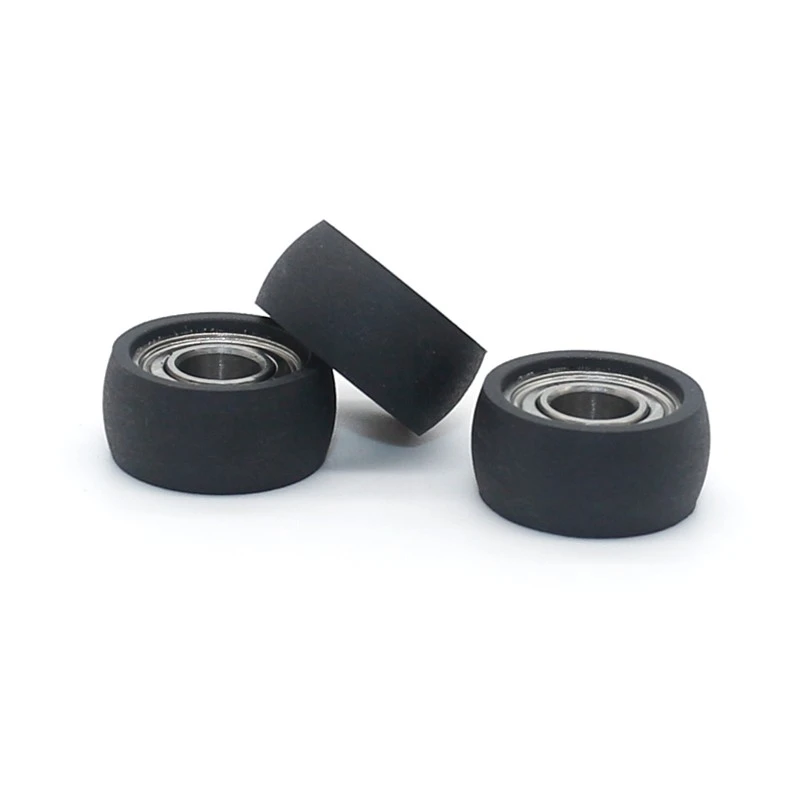

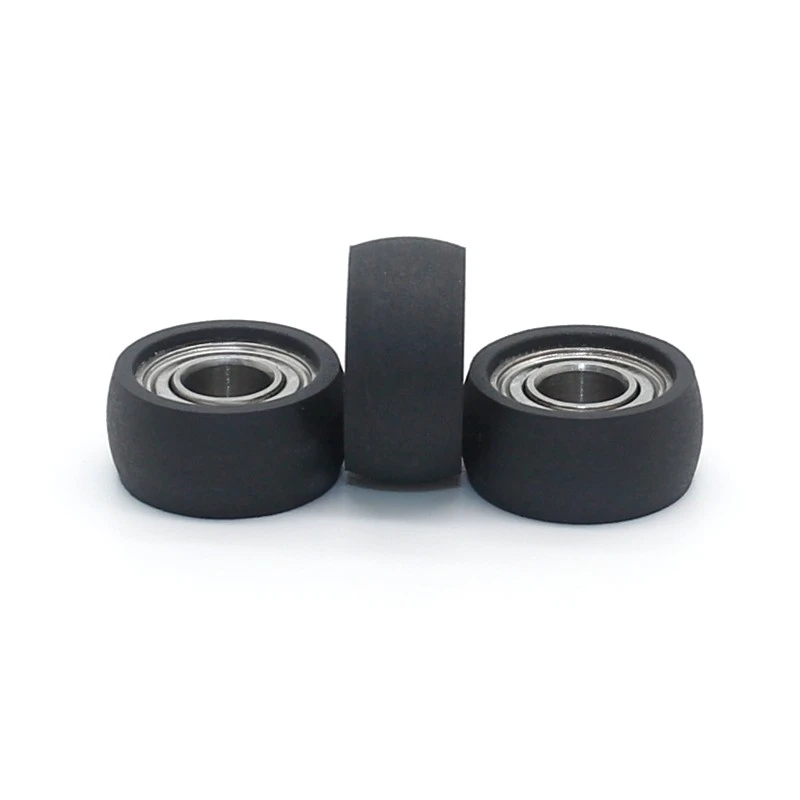

PU Coated Bearing Roller 685zz

A Small PU Roller for High-Frequency Feeding Mechanisms

In a currency counting or banknote sorting machine, rollers repeatedly contact paper surfaces while the machine is running at high speed. The roller therefore needs more than simple rotation.

It needs to maintain stable contact without generating excessive noise or damaging the material being transported.

The PU-coated outer surface of this roller creates a resilient contact layer between the bearing and the working surface. Compared with a bare metal bearing, the coated surface can provide better friction characteristics and help reduce direct metal-to-metal contact.

This makes the design suitable for compact feeding and conveying mechanisms found in:

Currency counting machines

Banknote sorting machines

Bill sorting equipment

Paper feeding mechanisms

Compact inspection equipment

Small packaging machines

Office automation equipment

Precision material handling systems

BLH's own polyurethane bearing range identifies currency counting, bill sorting, paper currency sorting and ATM-related equipment among its application areas.

Why PU Coating Matters in Small Bearing Rollers

A miniature bearing can rotate smoothly, but the bearing itself is not always the best surface for contacting a moving material.

This is where the PU coating becomes important.

The outer polyurethane layer can provide several practical benefits:

Controlled surface contact
The softer outer layer provides a more suitable contact surface for paper, plastic and other relatively delicate materials.

Noise reduction
The elastic coating helps absorb part of the vibration generated during rolling contact, which can be useful in office equipment and other noise-sensitive mechanisms.

Wear resistance
Polyurethane is widely used for roller surfaces where repeated contact and abrasion are expected. The actual service life depends on hardness, load, speed, temperature and the working surface.

Compact installation
A bearing and roller are integrated into one component, eliminating the need to design a separate wheel around a standard bearing.

Stable rotation
The internal miniature bearing provides the rolling function while the outer PU layer provides the working contact surface.

Why the 4mm Bore and 14mm OD Combination Is Useful

The 4mm bore makes this roller suitable for small shafts commonly found in compact mechanisms.

At the same time, the 14mm coated outer diameter provides a larger contact surface without significantly increasing the installation footprint.

This combination is particularly useful when equipment designers have limited space but still need a dedicated friction roller.

The important point for OEM buyers is that the outside diameter alone does not determine whether a roller will work correctly.

The following parameters should be checked together:

Shaft diameter

Bearing fit

Finished roller diameter

Roller width

PU hardness

Radial load

Rotating speed

Contact material

Working temperature

Required service life

For this reason, BLH recommends confirming the actual working conditions before replacing an existing roller with a different PU coated bearing.

Custom PU Coated Bearing Rollers from BLH

For equipment manufacturers, the bearing is only one part of the roller.

The relationship between the bearing, coating and finished dimensions determines whether the component can run correctly in the final machine.

BLH manufactures miniature bearings and polyurethane-coated bearing rollers and supports customized bearing and pulley solutions. The company states that it has an independent laboratory, R&D capabilities and automated production lines for large-scale supply. Its product range also includes polyurethane bearing pulleys, door and window pulleys and other transmission components.

For customized PU rollers, BLH can work with requirements such as:

4mm, 5mm, 6mm and other bore sizes

Customized finished OD

Customized roller width

Different PU hardness

Different colors

Different bearing materials

ZZ or 2RS sealing

Carbon steel or stainless steel bearing options

OEM drawings or samples

Customized roller geometry

BLH also describes its polyurethane roller manufacturing capabilities as including machining, surface preparation, coating, balancing and inspection processes.

For buyers who need hundreds, thousands or long-term repeat orders, this integrated manufacturing capability is more useful than simply buying a standard bearing and outsourcing the roller coating separately.

What Buyers Usually Ask Before Ordering a PU Coated Bearing Roller

What is a PU coated bearing roller?

It is a bearing with a polyurethane layer formed around the outer ring. The bearing provides smooth rotation, while the PU surface provides the working contact surface.

Is a 4mm bore suitable for my machine?

A 4mm bore is suitable when the shaft and required bearing fit are designed for a 4mm inner diameter. The actual shaft tolerance and mounting method should be checked before ordering.

What is the difference between a rubber coated bearing and a PU coated bearing?

The two terms are often used interchangeably in online product searches, but the actual coating material can be different. PU generally refers to polyurethane, while "rubber coated bearing" is a broader market term. Buyers should confirm the actual coating material and hardness with the supplier.

Can the PU hardness be customized?

Yes. PU coated bearing manufacturers commonly offer different hardness levels. BLH's polyurethane roller range supports customized hardness depending on the application.

Can BLH manufacture a non-standard size?

Yes. BLH provides custom bearing and pulley solutions and accepts OEM requirements based on drawings, samples or application requirements.

Can this roller be used in a currency counting machine?

It can be considered for compact feeding, guiding or friction-drive mechanisms in currency counting and banknote sorting equipment. The final suitability depends on the machine's shaft size, roller geometry, load, speed and required friction characteristics.

Why Buy from a Bearing Manufacturer Instead of a Trading Company?

For a standard bearing, purchasing from a distributor may be enough.

For a custom PU coated bearing roller, however, the finished product depends on much more than the bearing model.

A manufacturer can control or coordinate the key variables from bearing production to finished roller specifications. This becomes important when an OEM customer needs consistent dimensions across repeated production batches.

BLH has been manufacturing bearings and custom bearing-related components for years and states that its product range covers miniature bearings, stainless steel bearings, flanged bearings, polyurethane bearing pulleys and other customized transmission components. Its current company information also lists 60 automated production lines and an independent laboratory.

For OEM projects, customers can provide:

A drawing → a sample → a bearing specification → or simply the working application.

BLH can then evaluate the bearing size, roller dimensions and coating requirements before mass production.

Get a Custom 4×14×6.5mm PU Bearing Roller

If you are sourcing a 4mm bore PU coated bearing roller, this 14mm miniature roller can be developed for compact feeding and guiding mechanisms where smooth rotation, controlled surface contact and low operating noise are important.

For an exact quotation, buyers can provide the required:

ID × coated OD × total width + bearing type + PU hardness + application + annual quantity.

BLH can then confirm the bearing structure and coating specification before production.

Direct manufacturer supply | OEM/ODM customization | Miniature bearing expertise | Bulk production
