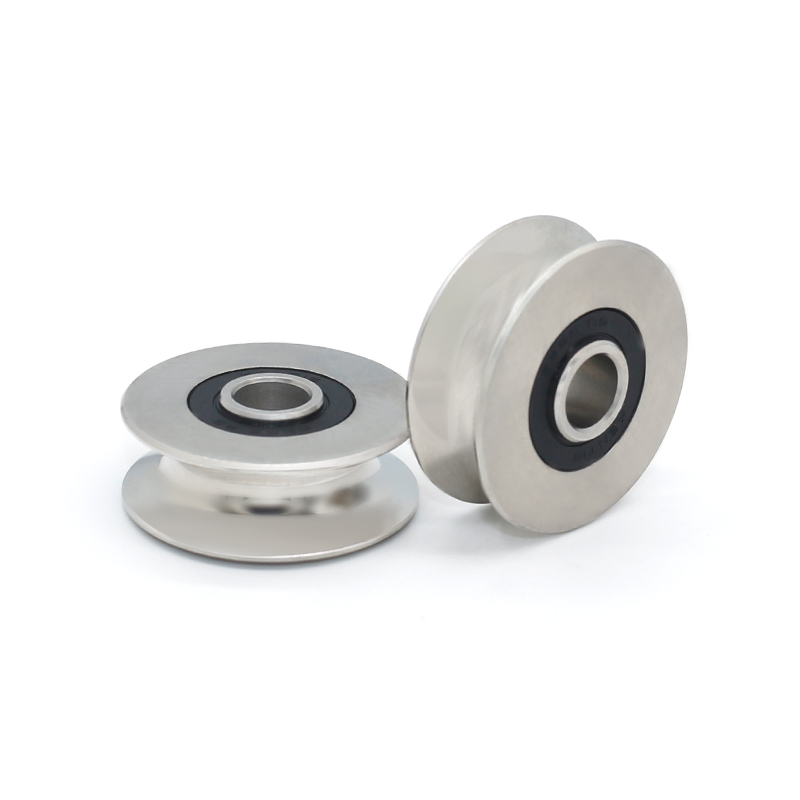

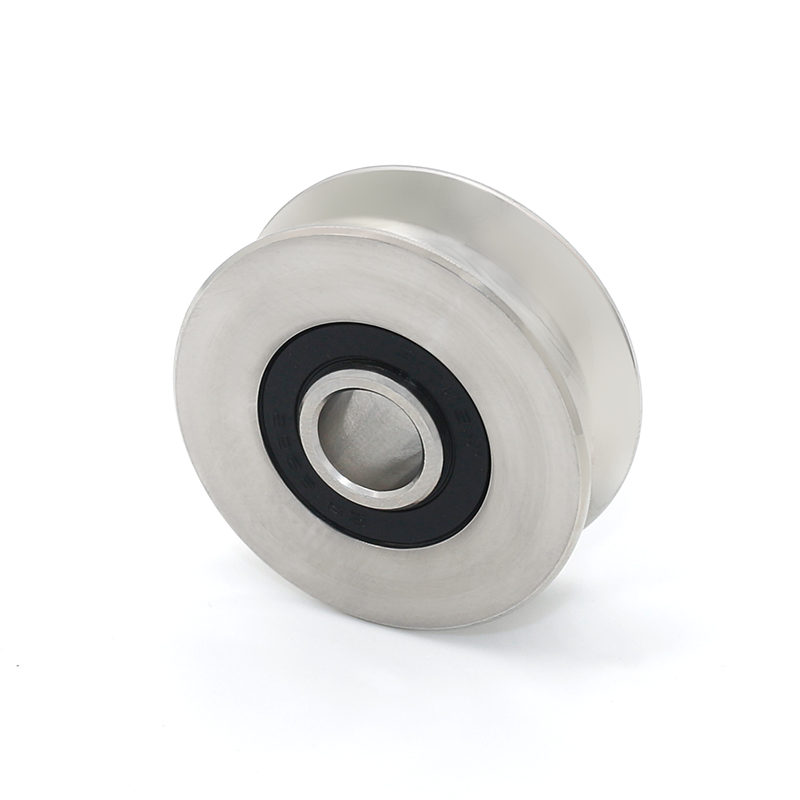

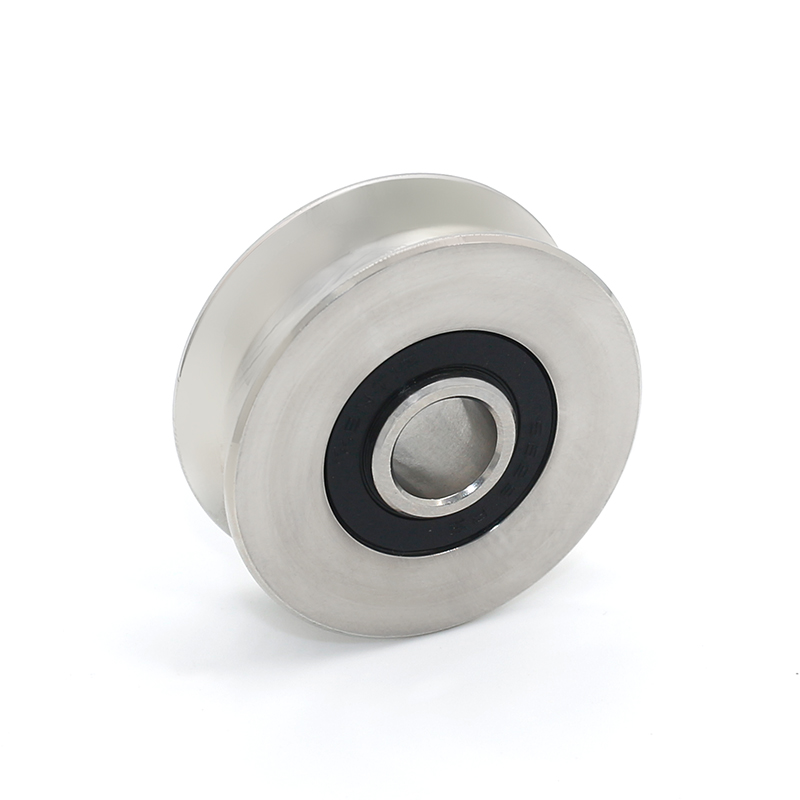

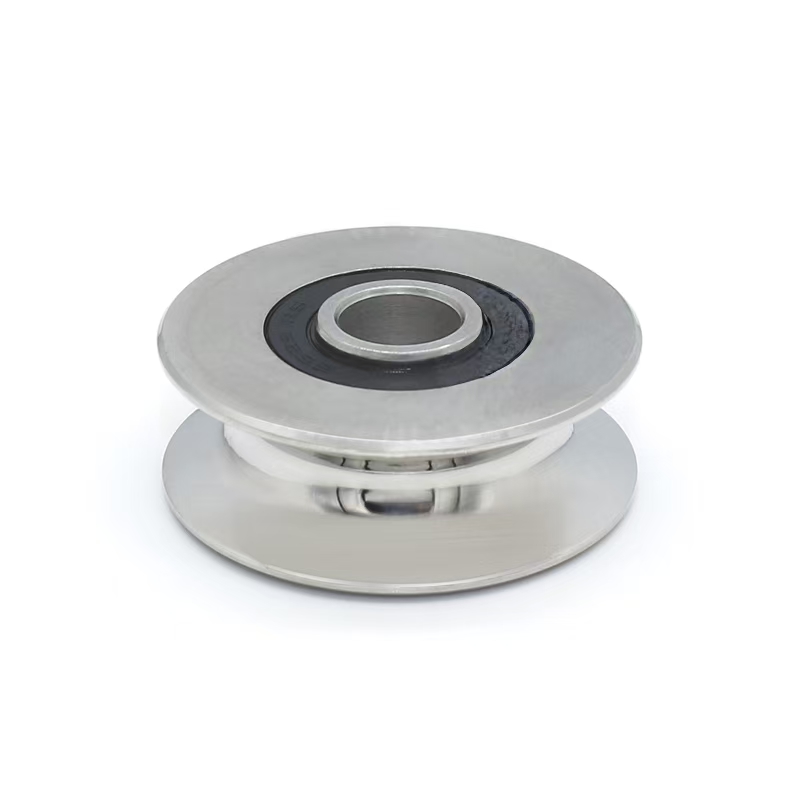

Non-standard U-shaped double-row steel ball bearing S629RS
Customized Non-standard U-shaped Double-row Steel Ball Bearing S629RS - An Expert in High-load and Corrosion-resistant Solutions
In the field of industrial equipment transmission, the non-standard U-shaped double-row steel ball bearing S629RS, with its unique design and excellent performance, has become a core component of equipment such as laser embroidery machines, lifting machinery, and precision guide rails. This article will deeply analyze the technical parameters, customization services, and application scenarios of this bearing to help you accurately match your needs!
I. Core Parameters of the Non-standard U-shaped Double-row Steel Ball Bearing S629RS
As a customized solution, S629RS has undergone structural upgrades based on standard bearings:
Dimension Specifications: Inner diameter 9mm × Outer diameter 26mm × Thickness 8mm (Customization of non-standard dimensions is supported);
Material Selection: 440 stainless steel (corrosion-resistant) or bearing steel (high hardness);
Sealing Design: Single-sided rubber seal (RS) or metal dust cover (ZZ);
Load Capacity: The double-row steel ball structure increases the radial load capacity by 30%, making it suitable for high-load working conditions;
Precision Grade: P0/P6 options are available to meet the needs of precision transmission.
II. Why Choose to Customize the S629RS Bearing?
Adaptable to Special Working Conditions: The U-shaped cross-section design is suitable for guide rail installation, and the double-row structure distributes the pressure, extending the service life.
Strong Corrosion Resistance: The stainless steel material has passed the salt spray test, making it suitable for humid, acidic, and alkaline environments.
Reduced Maintenance Costs: High-precision clearance (C0/C3 options are available) reduces friction losses and the frequency of shutdown for maintenance.
III. Popular Application Scenarios
Laser Embroidery Machines: Maintains stability under high-speed operation to ensure pattern accuracy;
Lifting Equipment: High load capacity to cope with frequent lifting operations;
Automated Production Lines: Compact design is suitable for narrow spaces and supports long-term operation.
IV. Procurement Guide
Price Reference: The unit price for bulk procurement can be as low as XX yuan (Please consult the supplier for specific details);
Customization Cycle: 7-15 working days (Adjusted according to complexity);
Minimum Order Quantity: Small batch trial production is supported (MOQ is 100 pieces for some manufacturers).
V. Frequently Asked Questions
Q: Can S629RS replace 62905-2RS?
A: It is necessary to compare according to the installation dimensions and load requirements. It is recommended to contact the manufacturer to obtain the replacement model comparison table.
Q: Does the stainless steel material affect the service life of the bearing?
A: The 440 stainless steel has been quenched, and its hardness and wear resistance are close to those of bearing steel, making it suitable for corrosive scenarios.
Take Action Now!
If you need the customization service of the non-standard U-shaped double-row steel ball bearing S629RS, please contact us to obtain a free technical solution!
For more product information, please contact our engineer:
Jack / Engineer Manager.
Wechat / Tel:0008613095650338
E-mail: jackengineer@blhbearing.com
Website: www.blhbearing.com
Bai Li Hong Bearing Co., Ltd.
Address: No. 7, Liyuan Road, Zhangmu Town, Dongguan City, Guangdong Province, China
