Product Introduction

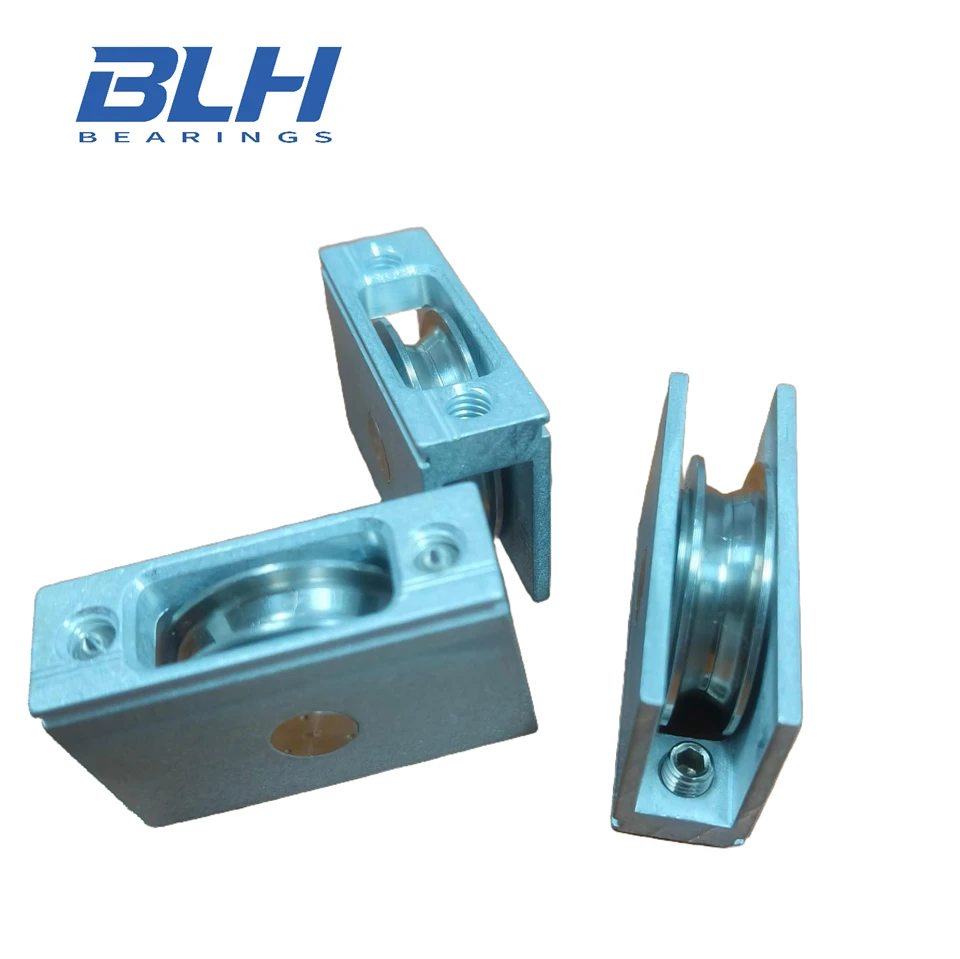

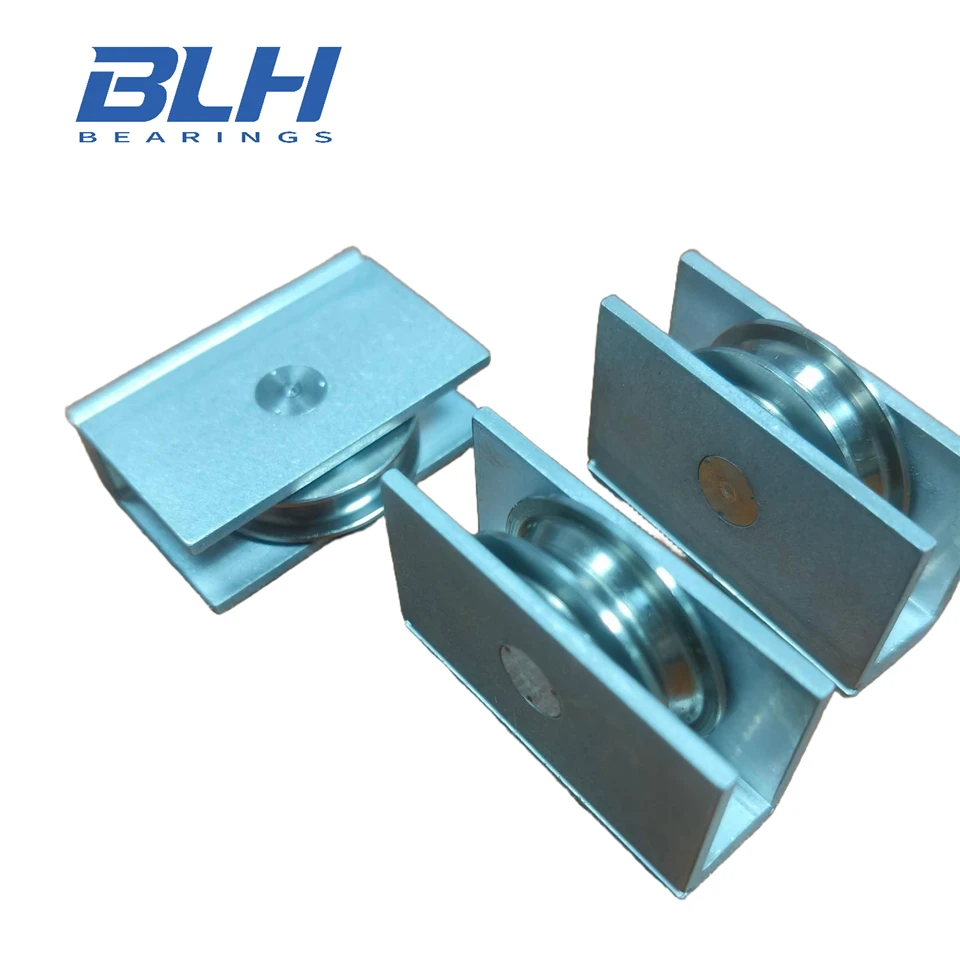

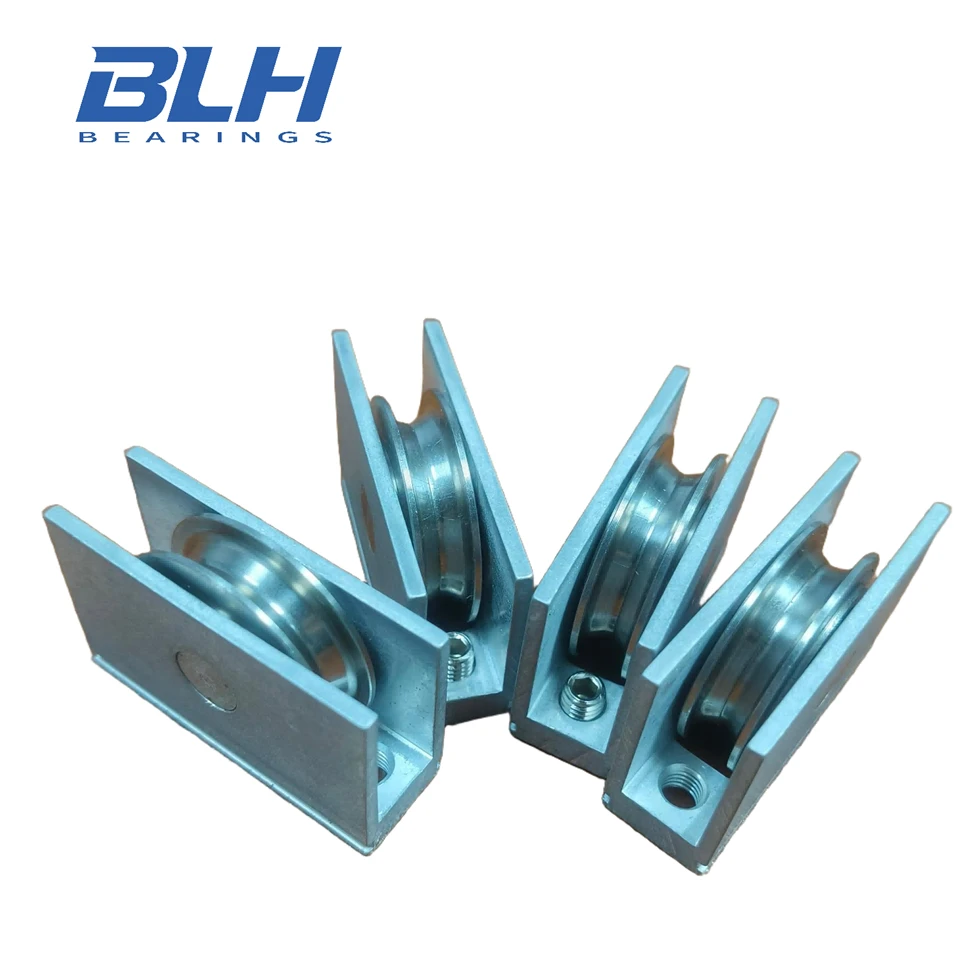

The SMR126ZZ V Groove Roller Assembly is a track-guided roller component designed for compatible sliding doors, overhead sliding systems, industrial access doors, and other applications that require controlled movement along a fixed track.

Manufactured by BLH Bearing Factory, this assembly combines a 6063 aluminum alloy housing, a SUS304 stainless steel V-groove wheel, an SMR126ZZ stainless steel bearing, and matching installation components. The V-shaped wheel profile is designed to run on a compatible V-shaped track, helping guide the moving panel or mechanism along its intended path.

Unlike a loose roller supplied without mounting hardware, this assembled unit brings several components together in one package, making it easier for equipment manufacturers to plan the mounting structure and installation process.

The SMR126ZZ V groove roller assembly can be considered for sunroom sliding doors, industrial sliding panels, aluminum-frame equipment, and custom track-guided mechanisms. Final suitability depends on the track profile, load conditions, mounting arrangement, and operating environment.

BLH can evaluate custom dimensions and mounting requirements based on customer drawings, samples, and application details.

Material Specifications

1. 6063 Aluminum Alloy Housing

The outer housing is made from 6063 aluminum alloy. This material is commonly used in industrial profiles and structural components because of its relatively low weight, good machinability, and suitability for various surface treatments.

For sliding door systems and aluminum-frame equipment, an aluminum housing helps keep the assembly lightweight while providing a practical mounting structure.

Anodizing and other surface treatments may be considered according to the project requirements. The available finish, color, and dimensional tolerances should be confirmed before production.

The housing's load capacity depends on more than the alloy grade. Wall thickness, cross-sectional geometry, mounting-hole positions, fasteners, and installation conditions all affect its structural performance. Heavy doors and frequently operated mechanisms require appropriate strength verification.

2. SUS304 Stainless Steel V-Groove Wheel

The V-groove wheel is made from SUS304 stainless steel. Its primary function is to roll along a compatible V-shaped track and guide the movement of the connected door or mechanism.

Compared with ordinary carbon steel, SUS304 generally offers better corrosion resistance in many everyday damp environments. This makes it a material option for selected outdoor door systems, sunrooms, and industrial guide mechanisms.

Wheel and track compatibility is essential. The groove angle, track profile, wheel dimensions, and installation alignment must work together. A mismatch can lead to uneven contact, increased rolling resistance, or premature wear.

SUS304 should not be treated as corrosion-proof in every environment. Applications involving seawater, persistent salt spray, chloride-containing cleaners, or aggressive chemicals require a separate material assessment.

3. SUS304 Stainless Steel Bearing and Internal Components

According to the specified material requirements for this assembly, the inner ring, outer ring, and balls of the SMR126ZZ bearing are made from SUS304 stainless steel. The specified shaft and other designated metal components are also stainless steel.

The bearing supports the wheel's rotational movement. Its running clearance, lubrication condition, fit, and assembly accuracy all influence the performance of the complete roller unit.

For purchasing and engineering approval, buyers should confirm the bearing configuration, shielding arrangement, lubricant type, and operating temperature range. Stainless steel components alone do not eliminate the effects of contamination, lubricant loss, or prolonged exposure to water.

The final bill of materials and approved drawing should be used to confirm the material of each individual component.

Performance Features

1. V-Groove Guidance for Compatible Tracks

The V-shaped wheel profile is designed to work with a matching V-shaped track. When the wheel and track geometry are correctly matched, the contact profile helps guide the moving assembly along the intended path.

Track straightness, mounting alignment, and groove compatibility should be checked during installation. If the application requires additional protection against derailment, suitable mechanical stops or anti-lift features should be incorporated into the overall design.

2. Lightweight Housing with a Stainless Steel Wheel

The combination of a 6063 aluminum alloy housing and a SUS304 stainless steel wheel addresses two different design requirements: a relatively lightweight mounting structure and a corrosion-resistant wheel material.

This configuration may suit selected light-duty industrial mechanisms and sliding systems. Actual load capacity must be assessed from the complete assembly design, mounting method, track geometry, and operating conditions rather than from material selection alone.

3. Integrated Assembly for Equipment Installation

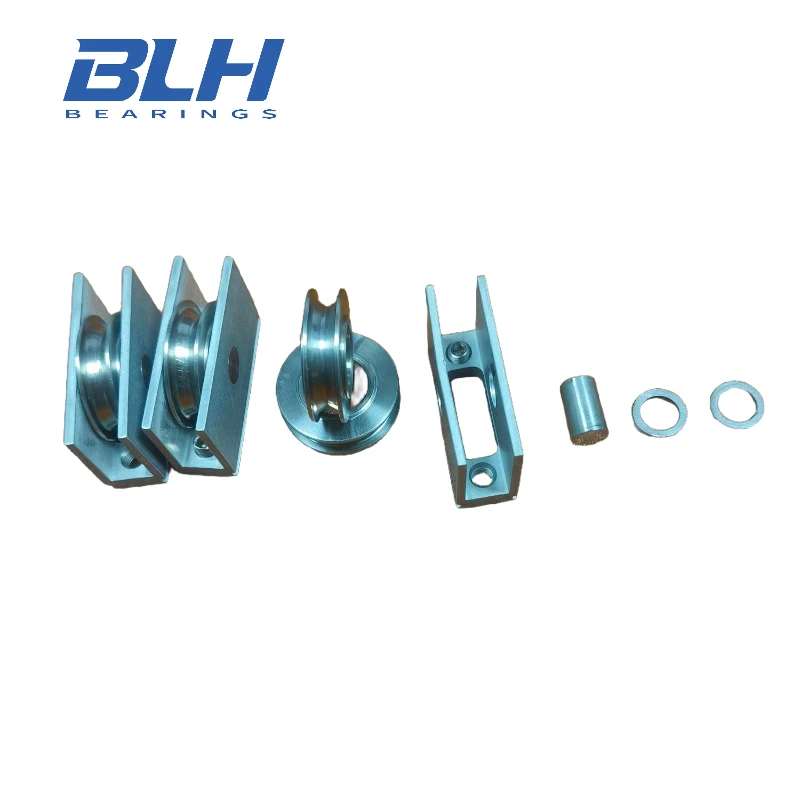

The assembly brings the wheel, bearing, housing, and associated mounting components together in one unit. This helps equipment manufacturers check mounting interfaces and component dimensions during the design stage.

For custom doors or special track systems, BLH can review bracket dimensions, mounting-hole positions, shaft or sleeve dimensions, and washer arrangements based on the supplied drawings.

Whether the bearing or wheel can be replaced separately depends on the actual fit and assembly method. This requirement should be confirmed before ordering if field maintenance is important.

4. Suitable for Selected Track-Guided Applications

Depending on the load, track profile, and installation arrangement, the SMR126ZZ V groove roller assembly may be evaluated for:

Sunroom and selected outdoor sliding door systems

Industrial access doors and sliding protective panels

Sliding mechanisms built into aluminum profile frames

Adjustable guide assemblies in packaging machinery

Custom V-track movement systems

These are potential application areas, not a guarantee of suitability for every installation. The actual design must be checked against the working load and safety requirements.

5. Practical Maintenance Requirements

The service life of a roller assembly depends on more than bearing material. Track cleanliness, load distribution, lubrication, alignment, and operating frequency also affect performance.

For outdoor installations, periodically remove dirt, sand, and accumulated debris from the track. Check the wheel surface, fasteners, bracket, and bearing for signs of wear or abnormal movement.

If the assembly develops excessive noise, increased resistance, or noticeable play, inspect the track alignment, bearing condition, and mounting connections before deciding which components need replacement.

Installation Examples

Example 1: Sunroom Sliding Door

Sunroom doors need to move smoothly within a limited mounting space and may be exposed to rain and humidity.

The roller assembly can be mounted to the upper door structure, with the V-groove wheel running on a compatible overhead V-track. The number of rollers required depends on the door weight, dimensions, center of gravity, mounting structure, and applicable safety requirements.

During installation, check that the door is level, the track is straight, and the rollers make appropriate contact with the track. Washers may be used to adjust the designed installation clearance, but they should not be used to compensate for an incorrectly designed mounting structure.

After assembly, test the door through its full travel and check for excessive resistance, abnormal noise, or unwanted movement.

Example 2: Industrial Sliding Access Door

Industrial facilities often use sliding access doors to provide entry to machinery or maintenance areas.

The SMR126ZZ roller assembly may be considered for a compatible V-track arrangement. The roller quantity should be selected according to the door's weight, load distribution, operating frequency, and mounting geometry.

For frequently operated doors, inspect the wheel-track contact, bracket connections, and bearing condition at appropriate intervals. Where the door presents a personnel safety risk, independent anti-drop protection, mechanical stops, or suitable safety interlocks may be required.

The roller assembly should not be treated as a substitute for the door system's safety features.

Example 3: Outdoor Sliding Gate

Outdoor gates require attention to rainwater, dust, and possible corrosion exposure.

A SUS304 stainless steel wheel and bearing can be considered for suitable outdoor conditions. However, installations close to the coast or exposed to persistent salt spray require a specific assessment of the materials and maintenance requirements.

After installation, check drainage around the track, wheel alignment, fastener tightness, and any signs of corrosion or uneven wear.

Overseas Application References

The following examples are illustrative engineering scenarios, not verified BLH customer projects, purchase records, or customer testimonials. They demonstrate how a buyer might assess the assembly for different applications. Actual customer cases should only be published when supported by confirmed project records.

Application Reference 1: Sunroom Sliding Door in Malaysia

Illustrative application: A sliding door system for a residential sunroom.

Proposed design conditions:

Door weight: 45 kg per panel

Initial layout for evaluation: 4 roller assemblies per panel

Average static load under an ideal equal distribution: 11.25 kg per assembly

Environment: Rainy and humid outdoor conditions

Main checks: Door alignment, track drainage, wheel corrosion, and rolling resistance

The 11.25 kg figure is calculated by dividing the 45 kg door weight by four assemblies. It is only a theoretical average, not a confirmed working load or safe load rating. Uneven load distribution, the door's center of gravity, installation tolerances, and dynamic forces can increase the load on individual rollers.

The final arrangement should be approved only after the assembly's load capacity has been verified and the installed door has been tested.

Application Reference 2: Outdoor Sliding Gate in Australia

Illustrative application: A residential or light-commercial outdoor sliding gate.

Proposed design conditions:

Gate weight: 38 kg

Initial layout for evaluation: 2 roller assemblies

Average static load under an ideal equal distribution: 19 kg per assembly

Environment: Outdoor exposure, with possible coastal salt spray

Main checks: Individual roller loading, wheel-track contact, bracket strength, and corrosion resistance

The calculated 19 kg per assembly is not a verified rating for the SMR126ZZ assembly. Before using this arrangement, the engineer should confirm the rated load and assess whether SUS304 meets the actual corrosion requirements.

For coastal installations, material selection and maintenance planning deserve particular attention.

Application Reference 3: Industrial Sliding Door in Thailand

Illustrative application: A sliding partition or machine-access door in an industrial workshop.

Proposed design conditions:

Door weight: 52 kg

Initial layout for evaluation: 4 roller assemblies

Average static load under an ideal equal distribution: 13 kg per assembly

Planned operating frequency: 30–50 opening and closing cycles per day

Main checks: Bracket fastening, bearing lubrication, track cleanliness, and wear after repeated operation

The 13 kg figure is a theoretical average, not an approved load rating. Final selection should account for uneven loading, operating forces, alignment, and the expected service life.

For this type of application, a practical evaluation can record initial rolling resistance, door movement, fastener condition, and wheel wear. These observations can then be used to establish a suitable inspection and maintenance schedule.

BLH Customization and Manufacturing Support

BLH Bearing Factory can evaluate custom roller assembly requirements based on customer drawings, samples, and application conditions.

Available items for technical review include:

Material configuration: 6063 aluminum alloy housing, SUS304 V-groove wheel, and specified internal components

Mounting structure: Bracket dimensions, mounting holes, shaft, sleeve, and washer specifications

Wheel and track compatibility: Groove angle, wheel dimensions, and matching track profile

Surface treatment: Suitable aluminum housing finishes based on project requirements

Quality inspection: Agreed dimensional checks, material verification, assembly inspection, and running tests where specified

When requesting a quotation, please provide a 2D drawing, 3D file, or physical sample if available. Include the track profile, door or moving-part weight, mounting arrangement, operating frequency, environment, and estimated order quantity.

For applications with demanding corrosion resistance or frequent operation, sample evaluation before mass production is recommended.

Load ratings, service life, delivery schedules, and test reports should be confirmed against the approved specification and order requirements.

Frequently Asked Questions

Q1: What is the load capacity of the SMR126ZZ roller assembly?

The rated load needs to be confirmed from the complete assembly design and verified specifications. A figure of 25 kg per assembly has been mentioned in the preliminary reference information, but it should not be published as a confirmed rating until supported by engineering calculations or test results.

Selection should consider the door weight, number of rollers, center of gravity, dynamic forces, and installation tolerances. Dividing the total door weight by the number of rollers gives only an average load, not a verified safe working load.

Q2: Can the bearing be replaced without replacing the complete roller assembly?

This depends on the bearing fit, wheel construction, shaft design, and assembly method. If separate bearing replacement is important for maintenance, confirm the disassembly method and replacement procedure before ordering.

Q3: Is the SUS304 stainless steel wheel suitable for coastal environments?

SUS304 offers corrosion resistance in many ordinary environments, but prolonged exposure to salt spray and chloride-containing moisture can increase corrosion risk. For coastal applications, assess the actual exposure conditions and confirm whether SUS304 is suitable or whether an alternative material is required.

Q4: Which track is compatible with the SMR126ZZ V-groove roller?

The wheel is intended for a V-shaped track with a compatible groove angle and contact profile. Before ordering, check the track cross-section, groove angle, wheel dimensions, and mounting arrangement. V-groove wheels and tracks from different manufacturers are not necessarily interchangeable.

Q5: Can this roller assembly be used on frequently operated industrial doors?

Potentially, depending on the load, travel speed, operating frequency, lubrication, track accuracy, and required service life. For high-cycle applications, conduct sample testing under representative conditions and monitor rolling resistance, noise, and wear before approving the design for production.

Q6: What are the MOQ and sample lead time?

Preliminary reference information lists a standard MOQ of 50 sets and a sample lead time of 3–5 days. These terms must be confirmed for the current specification. Custom dimensions, material availability, and special surface treatments may affect the actual lead time.

Q7: Can the 6063 aluminum housing be anodized?

Anodizing or another suitable surface treatment can be evaluated according to the project requirements. Please confirm the color, finish, and dimensional requirements before production, especially where treated surfaces affect fit or mounting clearances.

Q8: What information is required for a quotation?

Please provide the required quantity, drawing or sample, track profile, door or moving-part weight, mounting arrangement, and operating environment. If you need a custom bracket or special material configuration, include those requirements as well.

This information helps BLH evaluate the specification, confirm manufacturing feasibility, and prepare a more accurate quotation.
