introduce
|
Part Number |
SCF12 |
|
Type |
Standard Stud |
|
Brand |
BLH |
|
Load Direction |
Radial |
|
Internal Structure |
Roller Fill |
|
Mounting Method |
Hexagonal Hole |
|
Seal Type |
Fully Sealed |
|
Roller Material |
Stainless Steel |
|
Stud Material |
Stainless Steel |
|
Roller Diameter D |
30mm |
|
Roller Width C |
14mm |
|
Stud Diameter G |
M12 x 1.5 |
|
Thread Length G1 |
13mm |
|
Overall Part Length B1 |
40.2mm |

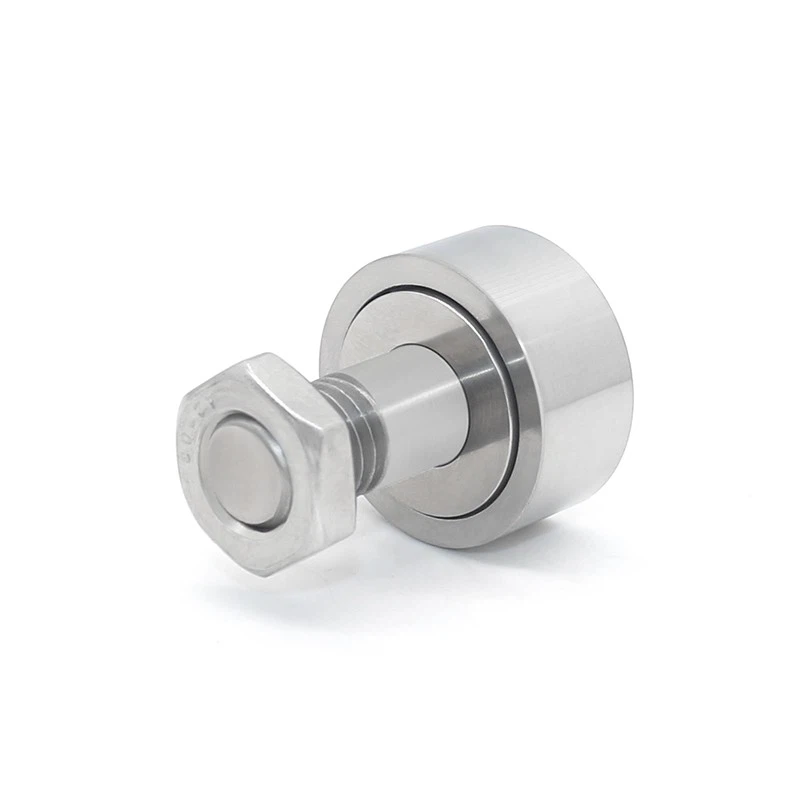

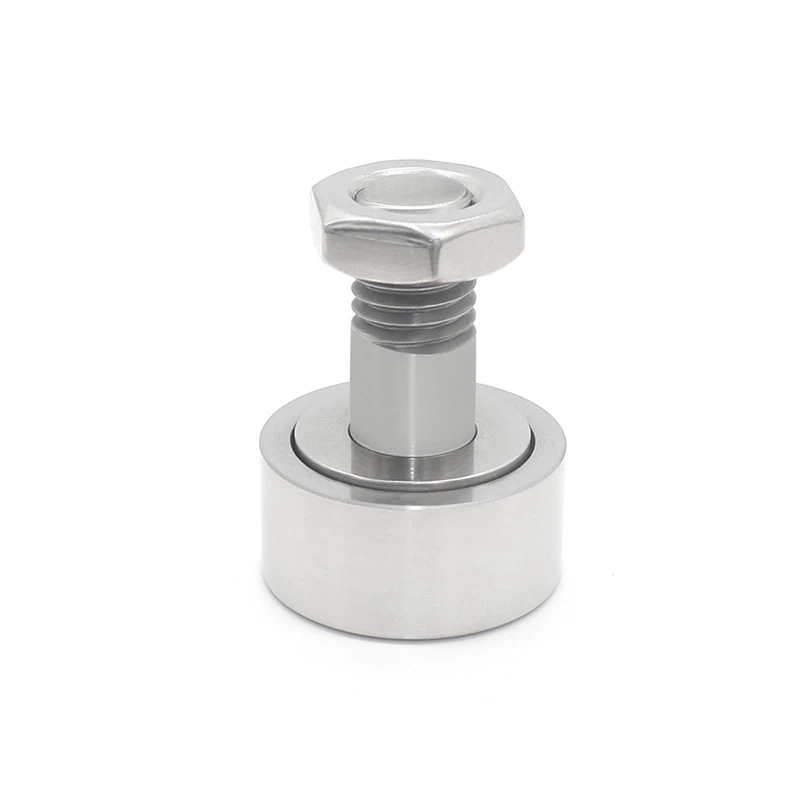

The SCF12 stud-type cam follower features a stud supporting the outer ring for easy installation and removal. They are available in various styles, including: heavy-duty stud (for increased load capacity and durability); cam follower (equipped with a hexagonal socket for easier installation); and blind hole (designed for applications where space is limited and through-hole mounting is not possible).
Operating temperature limits are crucial when selecting a cam follower. Stainless steel cam followers can operate at higher temperatures, but additional coatings such as black oxide can further enhance their temperature and corrosion resistance. For more information on bearings with extreme operating temperatures, please contact BLH Bearings, and our engineers will provide free, one-on-one assistance.
|

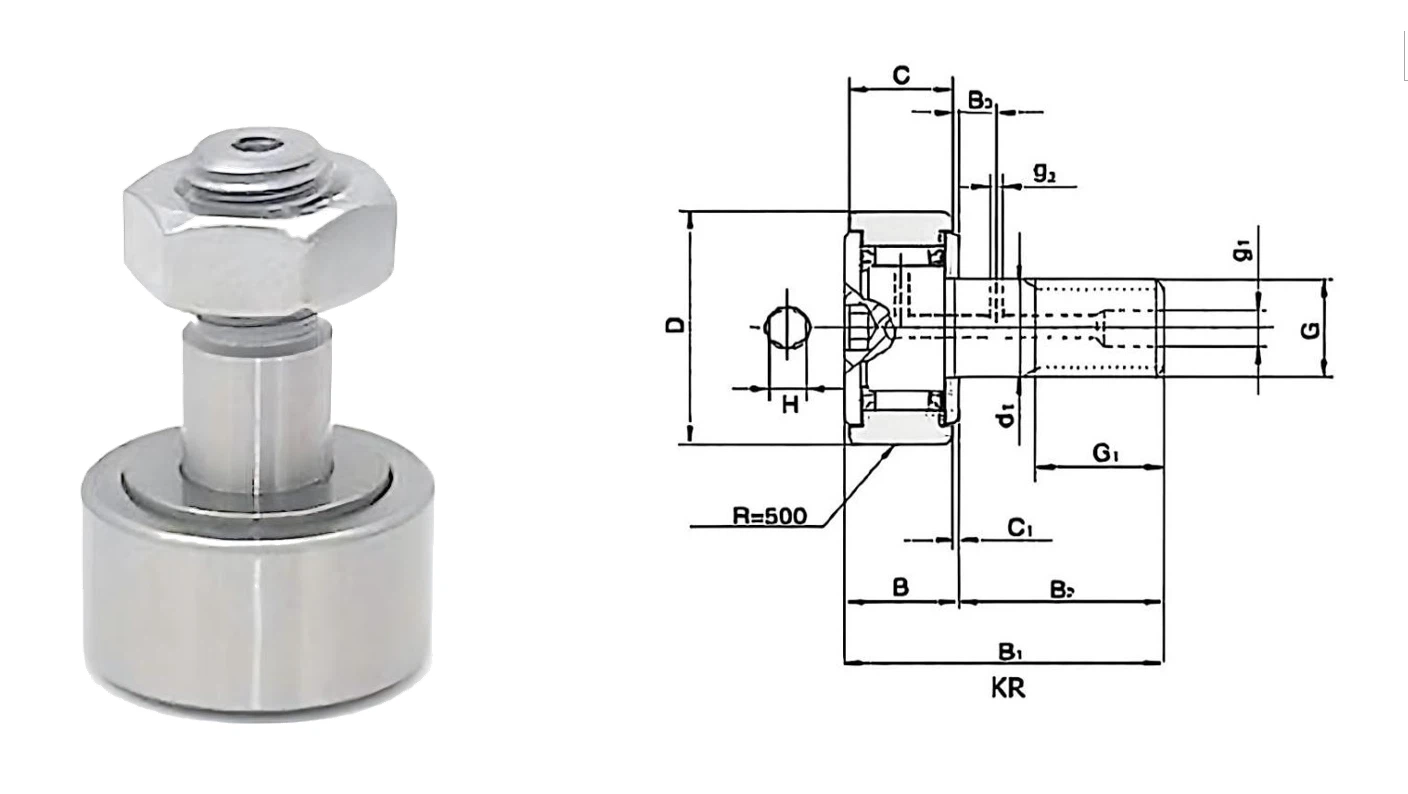

Bearing Model |
Bearing Size(mm) |
||||||||||||
|
D |
C |
G |
d1 |
G1 |
B |
B1 |
B2 |
B3 |
C1 |
rsmin |
H |
||
|
KR10 |
CF3 |
10 |
7 |
M3*0.5 |
3 |
5 |
8 |
17 |
9 |
- |
0.5 |
0.2 |
2 |
|
KR12 |
CF4 |
12 |
8 |
M4*0.7 |
4 |
6 |
9 |
20 |
11 |
- |
0.5 |
0.3 |
2.5 |
|
KR13 |
CF5 |
13 |
9 |
M5*0.8 |
5 |
7.5 |
10 |
23 |
13 |
- |
0.5 |
0.3 |
3 |
|
KR16 |
CF6 |
16 |
11 |
M6*1 |
6 |
8 |
12.2 |
28.2 |
16 |
- |
0.6 |
0.3 |
3 |
|
KR19 |
CF8 |
19 |
11 |
M8*1.25 |
8 |
10 |
12.2 |
32.2 |
20 |
- |
0.6 |
0.3 |
4 |
|
KR22 |
CF10 |
22 |
12 |
M10*1.25 |
10 |
12 |
13.2 |
36.2 |
23 |
- |
0.6 |
0.3 |
4 |
|
KR26 |
CF10K |
26 |
12 |
M10*1.25 |
10 |
12 |
13.2 |
36.2 |
23 |
- |
0.6 |
0.3 |
4 |
|
KR30 |
CF12 |
30 |
14 |
M12*1.5 |
12 |
13 |
15.2 |
40.2 |
25 |
6 |
0.6 |
0.6 |
6 |
|
KR32 |
CF12K |
32 |
14 |
M12*1.5 |
12 |
13 |
15.2 |
40.2 |
25 |
6 |
0.6 |
0.6 |
6 |
|
KR35 |
CF16 |
35 |
18 |
M16*1.5 |
16 |
17 |
19.6 |
52.1 |
32.5 |
8 |
0.8 |
0.6 |
6 |
|
KR40 |
CF18 |
40 |
20 |
M18*1.5 |
18 |
19 |
21.6 |
58.1 |
36.5 |
8 |
0.8 |
1 |
8 |
|
KR47 |
CF20-1 |
47 |
24 |
M20*1.5 |
20 |
21 |
25.6 |
66.1 |
40.5 |
9 |
0.8 |
1 |
8 |
|
KR52 |
CF20 |
52 |
24 |
M20*1.5 |
20 |
21 |
25.6 |
66.1 |
40.5 |
9 |
0.8 |
1 |
8 |
|
KR62 |
CF24 |
62 |
29 |
M24*1.5 |
24 |
25 |
30.6 |
80.1 |
49.5 |
11 |
0.8 |
1 |
12 |
|
KR72 |
CF24K |
72 |
29 |
M24*1.5 |
24 |
25 |
30.6 |
80.1 |
49.5 |
11 |
0.8 |
1 |
12 |
|
KR80 |
CF30 |
80 |
35 |
M30*1.5 |
30 |
32 |
37 |
100 |
63 |
15 |
1 |
1 |
17 |
|
KR85 |
CF30K |
85 |
35 |
M30*1.5 |
30 |
32 |
37 |
100 |
63 |
15 |
1 |
1 |
17 |
|
KR90 |
CF30J |
90 |
35 |
M30*1.5 |
30 |
32 |
37 |
100 |
63 |
15 |
1 |
1 |
17 |
