Product Introduction

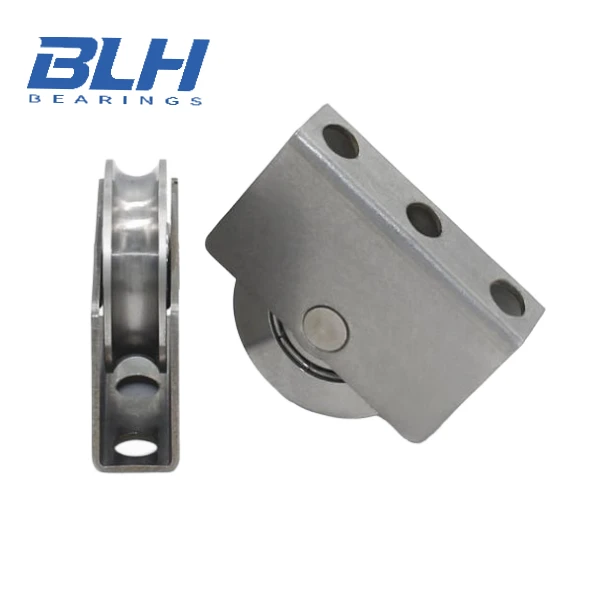

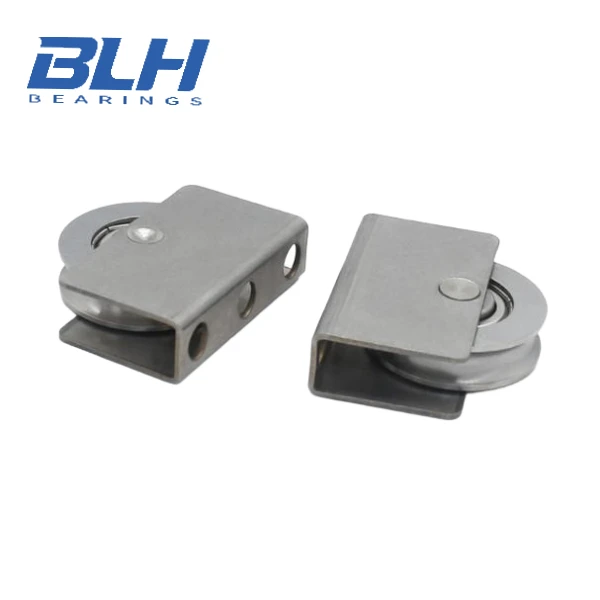

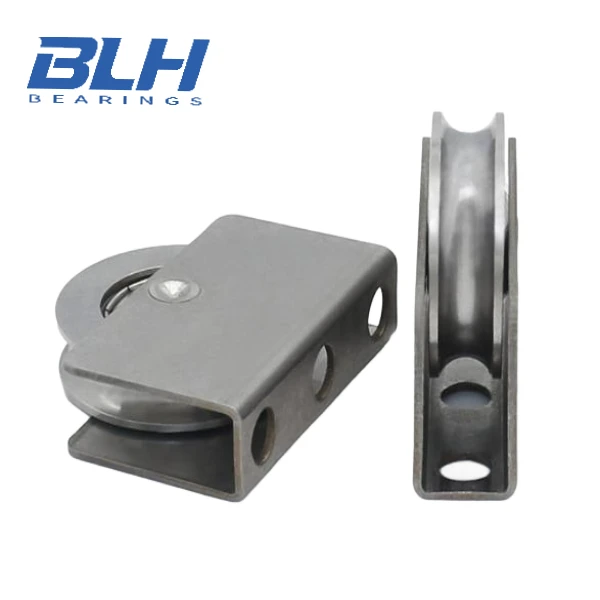

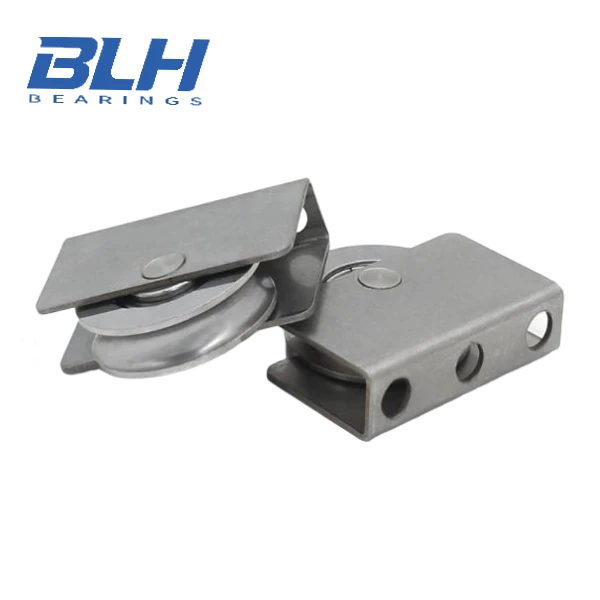

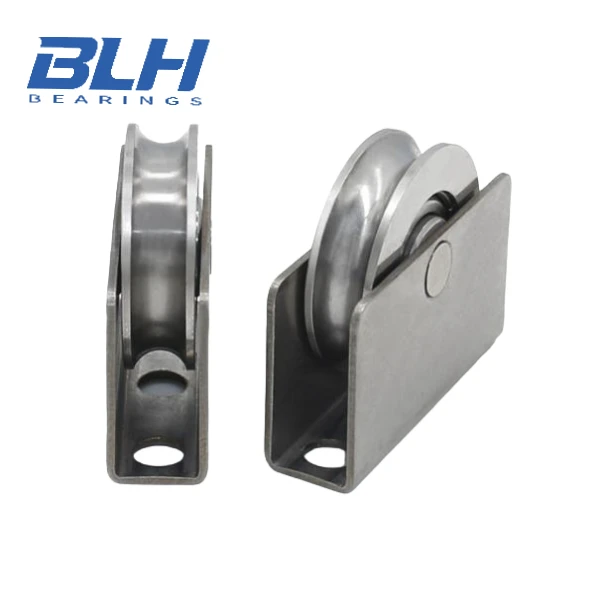

The BLH S606ZZ rope guide roller is a compact metal pulley assembly for wire rope and cable routing. The pictured assembly combines a U-groove metal sheave, an S606ZZ miniature stainless steel bearing and a formed mounting bracket.

The groove is the part that does the guiding work. A wire rope sits inside the U-shaped channel instead of running over a flat surface, which helps keep the rope in position as the sheave turns. This makes the roller useful where a rope needs to follow a fixed path, pass around a corner or stay clear of nearby machine parts.

The S606ZZ bearing sits inside the sheave and provides the rotating support. Once the bracket is fixed to the machine frame, the sheave turns around the shaft as the rope moves. In practical terms, the rope and roller move together rather than forcing the rope to rub against a stationary metal guide.

The bracket has several mounting holes, so the assembly can be fixed directly to a frame, plate or support structure. Hole locations and bracket dimensions can also be changed when the standard configuration does not match the customer's installation.

For OEM projects, BLH manufactures this type of S606ZZ bearing pulley assembly according to drawings, samples or specified dimensions. Groove profile, sheave size, bearing configuration, bracket shape and mounting-hole layout can be discussed before production.

Material and Construction

Metal Sheave

The sheave is made from metal and machined or formed with a U-shaped rope groove. For this type of roller, the groove is not simply a cosmetic feature. Its width, depth and radius need to suit the rope being used.

If the groove is too narrow, the rope may not sit properly. If it is too wide or shallow, the rope can move sideways more than expected. BLH therefore treats the groove dimensions as part of the working specification rather than using one groove size for every application.

Material and surface treatment can be selected according to the customer's application. Projects exposed to moisture, outdoor conditions or particular corrosion requirements can be reviewed separately.

S606ZZ Bearing

The roller uses an S606ZZ miniature deep groove ball bearing. A common S606ZZ size is 6 × 17 × 6 mm, referring to bore, outside diameter and width.

The ZZ designation refers to metal shields on both sides of the bearing. The bearing provides the rotating support inside the sheave while the outer metal structure takes care of the rope-guiding function.

For customers already using another bearing in their equipment, BLH can also check whether the bearing dimensions are suitable for a modified roller design.

Mounting Bracket

The bracket is designed to hold the sheave in a fixed position while leaving the wheel free to rotate. Multiple holes provide several possible fixing points, which is useful when the available mounting space varies from one machine to another.

For OEM production, the bracket can be redesigned around the customer's existing frame or mounting plate rather than forcing the customer to redesign the whole machine around a standard roller.

Performance Features

U-Groove Keeps the Rope on Track

The U-groove gives the wire rope a defined running position. This is particularly useful when the rope needs lateral guidance during repeated movement.

It is worth matching the groove to the actual rope diameter. A roller that is mechanically strong but has the wrong groove profile may still perform poorly in service.

Rotating S606ZZ Bearing

The S606ZZ bearing allows the sheave to rotate around a fixed shaft. During operation, the rope drives the wheel rather than sliding continuously against a fixed guide.

This arrangement is suitable for mechanisms where the rope makes repeated passes and where reducing direct sliding contact is important.

Compact Roller Assembly

The S606ZZ is a miniature bearing, so the resulting pulley assembly can be kept relatively small. This makes the design practical for compact machines, small lifting mechanisms and equipment where there is little room around the cable path.

Simple Mechanical Installation

There is no complicated mounting structure around the bracket. The roller can be positioned against a machine frame or support plate and secured through the prepared holes.

For production projects, the hole diameter, hole spacing and bracket dimensions can be adjusted to suit the customer's existing hardware.

OEM and Custom Production

Not every cable roller has the same working conditions. Rope diameter, load, speed, installation direction and available space can all change the required design.

BLH can manufacture customized U-groove cable rollers, wire rope guide rollers and related pulley assemblies from customer drawings or samples. This is particularly useful when the required roller is not an off-the-shelf size.

Installation Examples

Wire Rope Routing

A straightforward application is a fixed guide point in a wire rope system. The bracket is attached to the machine frame and the rope runs through the U-groove.

The roller can help keep the rope away from the frame or guide it toward another pulley, drum or moving component.

Sliding Door Mechanisms

Some industrial sliding doors and equipment doors use cable or rope mechanisms for movement, counterbalance or positioning. In these systems, a compact U-groove roller can be installed on the frame as a guide point.

The actual suitability depends on the rope diameter and the load carried by the door mechanism.

Compact Automation Equipment

Automation machinery often has cables and flexible transmission elements passing through narrow spaces. A small S606ZZ cable track roller can be mounted to the machine structure where the routing needs to be controlled.

For equipment with frequent cycling, the roller should be evaluated together with the actual duty cycle rather than selected only by its outside dimensions.

Light-Duty Lifting or Pulling Mechanisms

The U-groove provides a defined path for wire rope in selected light-duty lifting and pulling mechanisms. The roller is best regarded as a guide and rotating support component unless the complete assembly has been specifically engineered and tested for a lifting load.

For safety-critical lifting applications, the working load and safety factor must be established from the complete mechanical design.

Packaging and Industrial Machinery

Inside packaging machines, conveying equipment and other industrial machinery, flexible cables or ropes may need to pass around fixed points without interfering with surrounding components.

A small metal wire rope guide roller can be used in these locations when the dimensions and operating conditions are suitable.

Typical Overseas OEM Applications

This type of roller is commonly relevant to overseas machinery manufacturers, industrial automation integrators and hardware distributors that need compact cable-guiding components.

For example, a European door-hardware manufacturer may specify the bracket hole spacing to match an existing frame. A North American automation integrator may provide a CAD drawing and ask for a roller with a particular groove diameter. A Southeast Asian machinery manufacturer may purchase the assembly as part of a larger packaging or conveying system.

These examples describe typical procurement situations rather than named BLH customer case studies. We do not publish customer names or project details without authorization.

For OEM buyers, the important point is often not simply the bearing model. The complete assembly needs to fit the machine: the rope needs to sit correctly in the groove, the bearing needs to match the shaft, and the bracket needs to line up with the mounting structure.

Why Source This Roller from BLH?

BLH manufactures bearings, pulleys and roller assemblies, allowing the bearing and pulley components to be developed as one product rather than treated as unrelated parts.

For the S606ZZ rope guide roller, our production scope can include:

S606ZZ bearing assembly

U-groove sheave

Metal mounting bracket

Customized groove dimensions

Customized wheel diameter

Customized mounting-hole layout

Bearing and shaft fit

Surface finish

Complete roller assembly

OEM packaging

Customers can send a drawing, sample or even the key dimensions of an existing component. BLH can review the structure and confirm which dimensions need to be controlled before making samples.

This approach is useful for buyers replacing an existing supplier, developing a new machine or looking for a factory that can supply the complete industrial pulley assembly instead of purchasing the bearing and metal hardware separately.

FAQ

1. What is an S606ZZ rope guide roller?

It is a metal roller assembly that uses an S606ZZ miniature bearing to support a U-groove sheave. The groove guides wire rope or cable while the bearing allows the sheave to rotate around a fixed shaft.

2. What are the dimensions of an S606ZZ bearing?

A common S606ZZ bearing measures 6 mm bore, 17 mm outside diameter and 6 mm width. These dimensions are important when checking the bearing fit inside the sheave.

3. What size wire rope should be used with this roller?

There is no single rope diameter that applies to every version of the roller. The correct match depends on the U-groove width, depth and radius. BLH can adjust the groove dimensions according to the customer's rope specification.

4. Is this roller suitable for heavy loads?

The bearing size alone does not determine the load capacity of the complete pulley assembly. Sheave material, bracket strength, shaft support, rope tension, speed and mounting direction all affect the actual working load.

For a high-load application, BLH recommends confirming the complete assembly specification before production.

5. Can BLH change the mounting-hole dimensions?

Yes. The bracket can be customized for hole diameter, hole spacing, number of holes and overall bracket dimensions. A CAD drawing or physical sample is preferred for an exact OEM match.

6. Can another bearing replace the S606ZZ?

In many cases, yes, provided the replacement bearing has suitable dimensions and performance characteristics. BLH can review the required bore, outside diameter and width before changing the sheave design.

7. Can BLH make a custom U-groove cable roller?

Yes. BLH can produce custom U-groove cable rollers, wire rope guide rollers and metal pulley assemblies based on customer drawings, samples or specified dimensions.

8. What industries use this type of pulley assembly?

Typical applications include industrial door systems, automation equipment, packaging machinery, conveying equipment, cable-routing mechanisms and selected light-duty lifting or pulling systems. The final roller specification should always be matched to the actual operating conditions.
