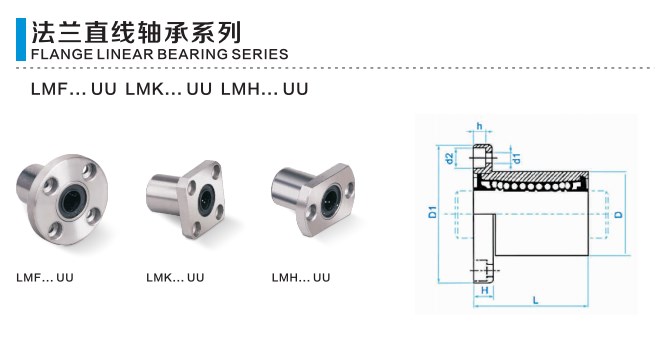

LMF flange linear bearings (round flange)
LMK flange linear bearings (square flange)
LMH flange linear bearings (elliptical flange)
We can customize and produce stainless steel non-standard linear flange bearings according to production and installation conditions and design and development situations.

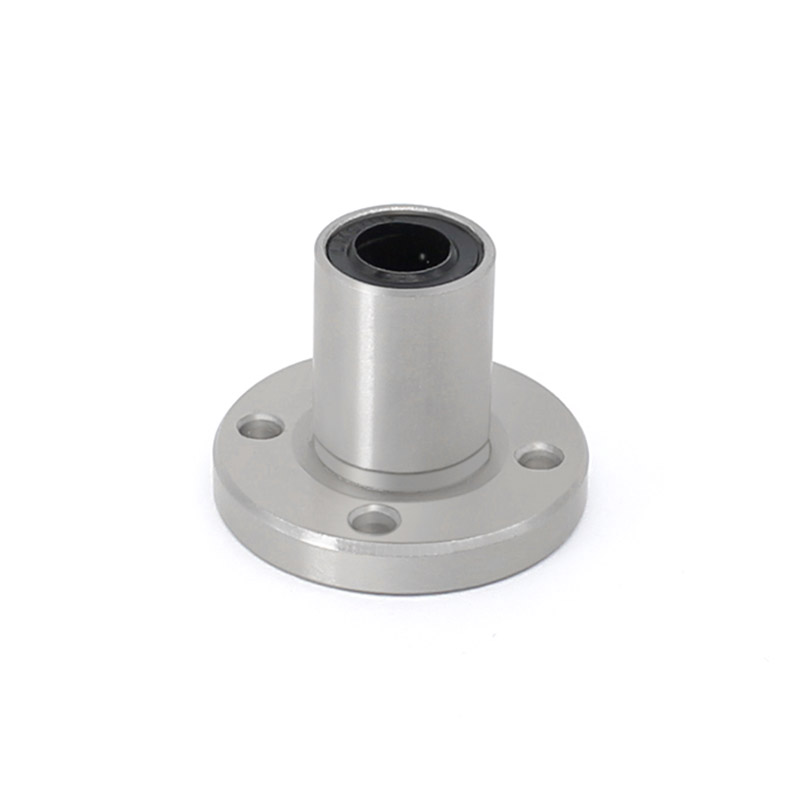

LMF flange linear bearing
Structural features: Adopting a circular flange design. This design makes the bearing more convenient during installation and fixation, and can better adapt to different installation positions and equipment structures. Its outer cylinder and flange are usually integrally formed, with a compact structure, enhancing the overall rigidity and stability of the bearing.
Application scenarios: Widely used in various equipment that requires linear motion, such as conveying devices in automated production lines, packaging machinery, numerical control machines, robots, etc. For example, in automated conveying devices, LMF flange linear bearings can ensure that the conveying components move smoothly and accurately on the linear track, improving production efficiency and product quality.
LMK flange linear bearing
Structural features: Mainly characterized by a square flange. The square flange has better positioning and fixation performance in some specific installation environments, can provide a more accurate installation position and a larger installation plane, and is convenient for connection and fixation with other components. At the same time, its internal structure is precisely designed to ensure high-precision linear motion.
Application scenarios: Commonly used in industrial equipment with high requirements for linear motion precision, such as precision measuring instruments, optical equipment, semiconductor manufacturing equipment, medical devices, etc. In precision measuring instruments, LMK flange linear bearings can enable the measuring probe or worktable to move in a high-precision linear direction, thus ensuring the accuracy of measurement results.
LMH flange linear bearing
Structural features: With a unique oval flange design, combining some advantages of circular and square flanges. It not only has a certain flexibility of circular flanges but also provides better stability and positioning performance in some directions. The arrangement of balls or rollers inside is reasonable, capable of withstanding large radial and axial loads while ensuring good linear motion performance.
Application scenarios: Suitable for equipment that has high load requirements and also needs a certain installation flexibility, such as 3D printers, engraving machines, fitness equipment, mining equipment, wind power equipment, etc. In 3D printers, LMH flange linear bearings can ensure the smooth linear movement of the print nozzle in the X, Y, and Z axes directions, thereby improving printing precision and quality.

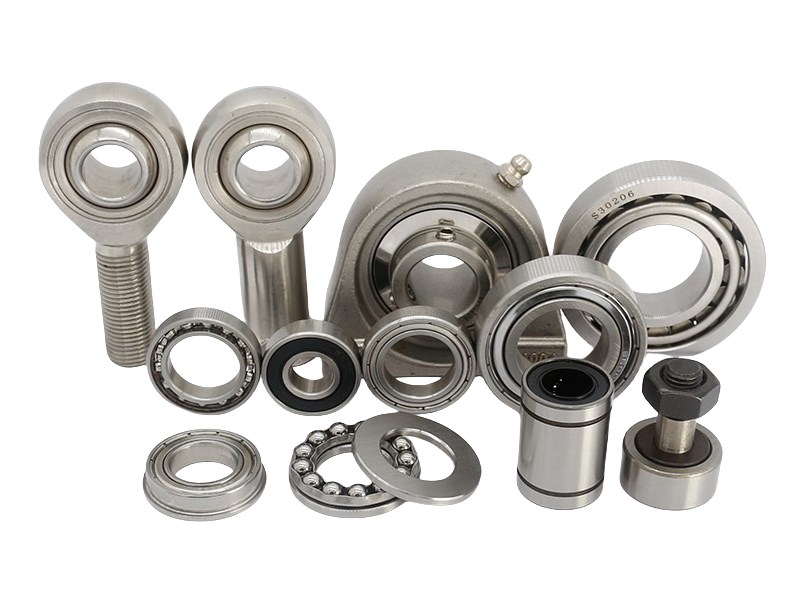

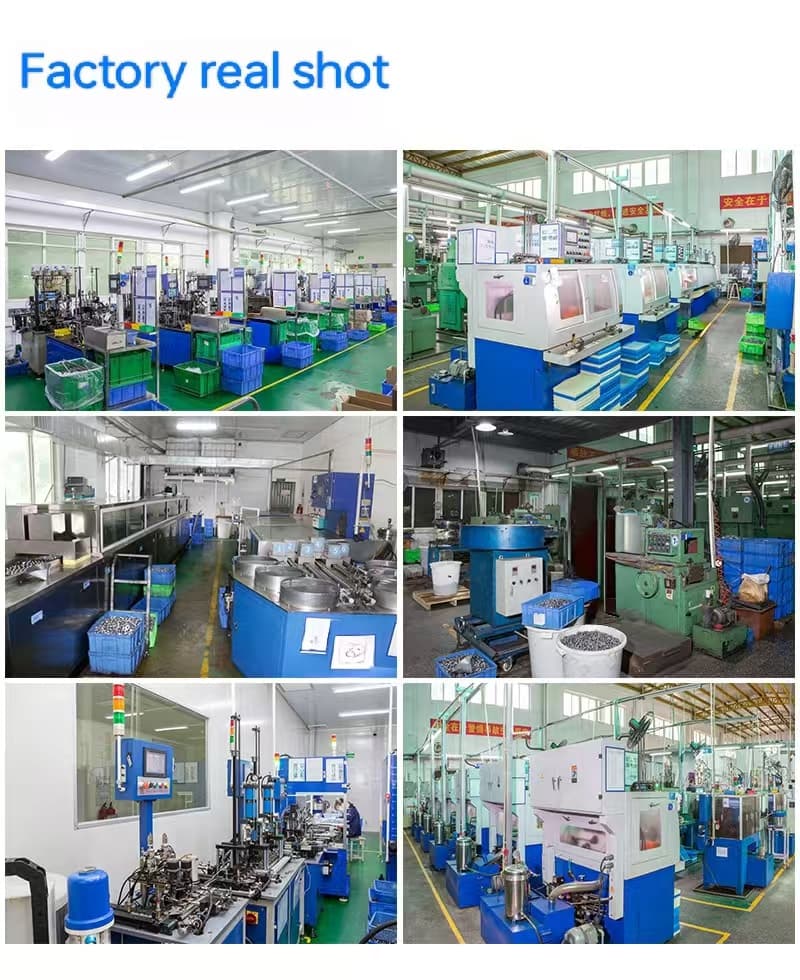

We have 20 years of production experience in stainless steel bearings. Customized production of various materials and sizes is available. Welcome to contact us.
