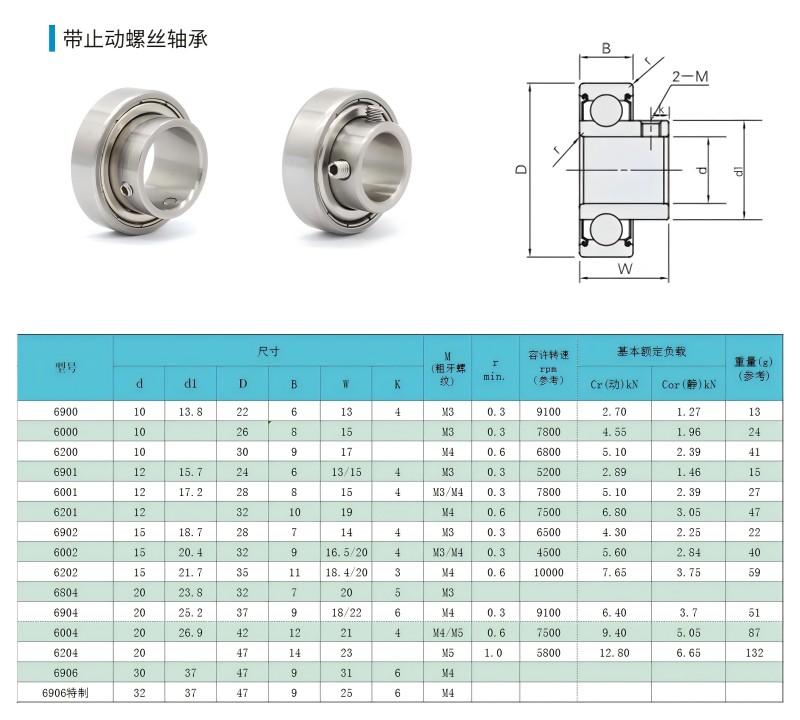

Spherical plain bearings with set screws6001ZZ
Single convex deep groove ball bearing 6001ZZ
Structural Characteristics
Single convex design: There is a convex structure on the outer ring or inner ring of the bearing. Usually, it is on the outer diameter surface of the outer ring or the inner diameter surface of the inner ring. This convex part can cooperate with other components to play a role in positioning, fixing or limiting the displacement of the bearing, making the bearing more stable during operation.
Deep groove raceway: Like ordinary deep groove ball bearings, it has a deep groove type raceway. The arc radius of the inner ring and outer ring is slightly larger than the radius of the ball. There is an excellent fit between the raceway and the steel ball, which enables the bearing to bear radial loads and also a certain amount of bidirectional axial loads.
This kind of product has high load capacity, high temperature resistance, strong acid and alkali resistance, low noise, good rust prevention, and a long service life. The products are widely used in: agricultural machinery, textile machinery, ceramic machinery, photovoltaic and lithium battery equipment, liquid crystal panel equipment, fans and light-load transmission devices. We are an original manufacturing factory with complete models and can customize production according to customers' sizes. Welcome to contact us.
E-mail:blhbearing@aliyun.com
