Our flanged bearings meet EU standards and can replace the same model of stainless steel flange bearings from internationally renowned brands. They offer the same quality at a much lower price, saving users significant costs. Our high-end flanged ball bearings are suitable for high-speed and heavy-load applications. The added flanged design makes flange mounting easier and faster for customers. We can produce flanged sleeve bearings and bronze flange bearings with inner diameters ranging from 1.5mm to 30mm, and can also customize production according to customers' operating environments and speed conditions.

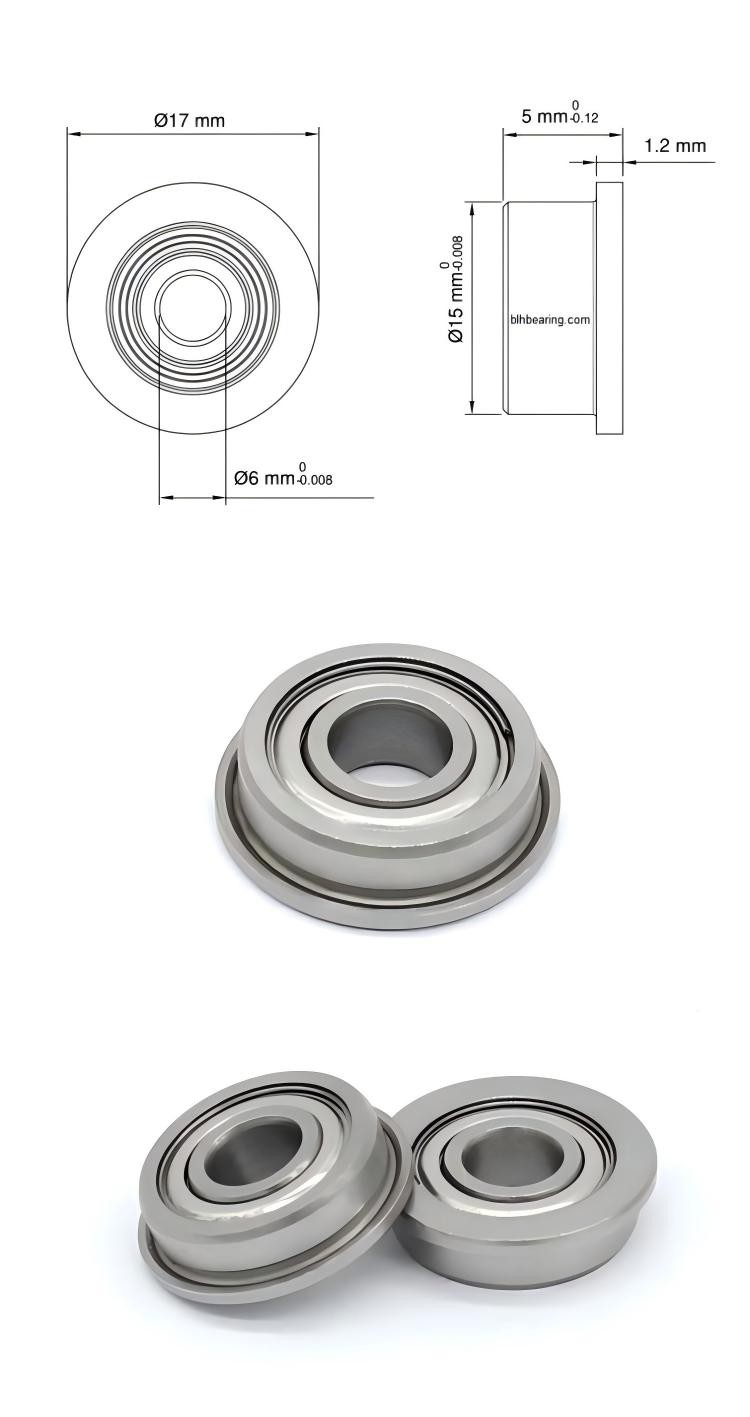

Detailed technical parameters of flange bearing 696ZZ 615/175 small bearing:

Bearing model	F696zz
Characteristics
System of Measurement	Metric
Bearing Type	Ball
Seal Type	Shielded
nner Ring Type	Standard
For Load Direction	Radial
Construction	Single Row
Ball Qty	7
Tolerance Class	ABEC1
Dimensions
Bore Dia	6 mm
Bore Dia Tolerance	-0.008mm to 0
Outer Dia	15 mm
Outer Dia Tolerance	-0.008mm to 0
Width	5 mm
Width Tolerance	-0.12mm to 0
Ball Dia	2.381 mm
Flange Outer Dia	17 mm
Flange Thickness	1.2 mm
Radial Clearance	0.005mm to 0.01 mm
Radia Clearance Trade No	MC3
Material
Ring Material	Chrome Steel
Ball Material	Chrome Steel
Cage Material	Stainless Steel
Shield Material	300 Series Stainless Steel
Performance
Dynamic Radial Load	256 Ibf
Static Radial Load	94 Ibf
Max Speed(X1000 rpm)	40
Temperature Range	-30°to 110℃

More flange bearing models and flange bearing size table

PartNumber	SealType	BoreDia	OuterDia	Width	Flange OuterDia	Flange Thickness	DynamicRadial Load	StaticRadial Load	MaxSpeed (X1000rpm)
F681	Open	1 mm	3 mm	1 mm	3.8 mm	0.3 mm	82.000 N	21.000 N	130
F691	Open	1 mm	4 mm	1.6 mm	5 mm	0.5 mm	120.000 N	30.000N	100
MF41x	Open	1.2 mm	4 mm	1.8 mm	4.8 mm	0.4 mm	95.000 N	26.000N	110
F681x	Open	1.5 mm	4 mm	1.2 mm	5mm	0.4 mm	95.000N	26.000N	100
F681xzz	Shielded	1.5 mm	4 mm	2 mm	5mm	0.6 mm	95.000 N	26.000N	100
F691x	Open	1.5 mm	5 mm	2 mm	6.5 mm	0.6 mm	144.000 N	40.000N	85
F691xzz	Shielded	1.5 mm	5 mm	2.6 mm	6.5 mm	0.8 mm	144.000 N	40.000 N	85
F601x	Open	1.5 mm	6mm	2.5 mm	7.5 mm	0.6 mm	281.000 N	79.000 N	75
F601xzz	Shielded	1.5 mm	6 mm	3 mm	7.5 mm	0.8 mm	281.000 N	79.000 N	75
F682	Open	2 mm	5 mm	1.5 mm	6.1 mm	0.5 mm	144.000 N	40.000N	85
F6822rs	Sealed	2 mm	5 mm	2.3 mm	6.1 mm	0.6 mm	144.000 N	40.000N	85
F682zz	Shielded	2mm	5 mm	2.3 mm	6.1 mm	0.6 mm	144.000 N	40.000N	85
MF52	Open	2 mm	5 mm	2 mm	6.2 mm	0.6 mm	144.000 N	40.000N	85
MF522rs	Sealed	2mm	5 mm	2.5 mm	6.2 mm	0.6 mm	144.000 N	40.000N	85
MF52zz	Shielded	2mm	5 mm	2.5 mm	6.2 mm	0.6 mm	144.000 N	40.000N	85
F692	Open	2mm	6mm	2.3 mm	7.5 mm	0.6 mm	281.000 N	79.000 N	75
F6922rs	Sealed	2mm	6mm	3 mm	7.5 mm	0.8 mm	281.000 N	79.000 N	75
F692zz	Shielded	2mm	6mm	3 mm	7.5 mm	0.8 mm	281.000 N	79.000N	75
MF62	Open	2mm	6mm	2.5 mm	7.2 mm	0.6 mm	281.000 N	79.000N	75
MF622rs	Sealed	2mm	6mm	2.5 mm	7.2 mm	0.6 mm	281.000 N	79.000N	75
MF62zz	Shielded	2mm	6mm	2.5 mm	7.2 mm	0.6 mm	281.000 N	79.000N	75
MF72	Open	2 mm	7 mm	2.5 mm	8.2 mm	0.6 mm	328.000 N	103.000 N	63
MF722rs	Sealed	2mm	7 mm	3 mm	8.2 mm	0.6 mm	328.000 N	103.000 N	63
MF72zz	Shielded	2 mm	7 mm	3 mm	8.2 mm	0.6 mm	328.000 N	103.000 N	63
F602	Open	2 mm	7 mm	2.8 mm	8.5 mm	0.7 mm	328.000 N	103.000 N	60
F6022rs	Sealed	2 mm	7 mm	3.5 mm	8.5 mm	0.9 mm	328.000 N	103.000 N	60
F602zz	Shielded	2 mm	7 mm	3.5 mm	8.5 mm	0.9 mm	328.000 N	103.000 N	60
F682x	Open	2.5 mm	6mm	1.8 mm	7.1 mm	0.5 mm	178.000 N	59.000 N	71
F682x2rs	Sealed	2.5 mm	6 mm	2.6 mm	7.1 mm	0.8 mm	178.000 N	59.000N	71
F682xzz	Shielded	2.5 mm	6mm	2.6 mm	7.1 mm	0.8 mm	178.000 N	59.000 N	71

Part Number	Seal Type	Bore Dia	Outer Dia		Width	Flange Outer Dia	Flange Thickness	Dynamic Radial Load	Static Radial Load	Max Speed (X1000 rpm)
F692x	Open	2.5 mm	7 mm	2.5 mm		8.5 mm	0.7 mm	328.000 N	103.000 N	63
F692x 2rs	Sealed	2.5 mm	7 mm	3.5 mm		8.5 mm	0.9 mm	328.000 N	103.000 N	63
F692xzz	Shielded	2.5 mm	7 mm	3.5 mm		8.5 mm	0.9 mm	328.000 N	103.000 N	63
MF82x	Open	2.5 mm	8 mm	2.5 mm		9.2 mm	0.6 mm	180.000 N	67.000 N	71
MF82x2rs	Sealed	2.5 mm	8 mm	2.5 mm		9.2 mm	0.6 mm	180.000 N	67.000 N	71
MF82xzz	Shielded	2.5 mm	8mm	2.5 mm		9.2 mm	0.6 mm	180.000 N	67.000 N	71
F602x	Open	2.5 mm	8 mm	2.8 mm		9.5 mm	0.7 mm	469.000 N	142.000 N	60
F602x 2rs	Sealed	2.5 mm	8 mm	4 mm		9.5 mm	0.9 mm	328.000 N	103.000 N	60
F602xzz	Shielded	2.5 mm	8 mm	4 mm		9.5 mm	0.9 mm	469.000 N	142.000 N	60
MF63	Open	3 mm	6 mm	2 mm		7.2 mm	0.6 mm	178.000 N	59.000 N	71
MF632rs	Sealed	3 mm	6 mm	2.5 mm		7.2 mm	0.6 mm	178.000 N	59.000 N	71
MF63zz	Shielded	3 mm	6 mm	2.5 mm		7.2 mm	0.6 mm	178.000 N	59.000 N	71
F683	Open	3 mm	7 mm	2 mm		8.1 mm	0.5 mm	264.000 N	90.000 N	63
F6832rs	Sealed	3 mm	7 mm	3 mm		8.1 mm	0.8 mm	264.000 N	90.000 N	63
F683zz	Shielded	3 mm	7 mm	3 mm		8.1 mm	0.8 mm	264.000 N	90.000 N	63
MF83	Open	3 mm	8 mm	2.5 mm		9.2 mm	0.6 mm	336.000 N	113.000 N	60
MF832rs	Sealed	3 mm	8 mm	3 mm		9.2 mm	0.6 mm	336.000 N	113.000 N	60
MF83zz	Shielded	3 mm	8 mm	3 mm		9.2 mm	0.6 mm	336.000 N	113.000 N	60
F693	Open	3 mm	8mm	3 mm		9.5 mm	0.7 mm	474.000 N	114.000 N	60
F6932rs	Sealed	3 mm	8 mm	4 mm		9.5 mm	0.9 mm	474.000 N	144.000 N	60
F693zz	Shielded	3 mm	8 mm	4 mm		9.5 mm	0.9 mm	474.000 N	144.000 N	60
MF93	Open	3 mm	9 mm	2.5 mm		10.2 mm	0.6 mm	485.000 N	151.000 N	56
MF932rs	Sealed	3 mm	9 mm	4 mm		10.6 mm	0.8 mm	485.000 N	151.000 N	56
MF93zz	Shielded	3 mm	9 mm	4 mm		10.6 mm	0.8 mm	485.000 N	151.000 N	56
F603	Open	3 mm	9 mm	3 mm		10.5 mm	0.7 mm	230.000 N	151.000 N	56
F6032rs	Sealed	3 mm	9 mm	3 mm		10.5 mm	0.7 mm	230.000 N	151.000 N	56
F603zz	Shielded	3 mm	9 mm	3 mm		10.5 mm	0.7 mm	230.000 N	151.000 N	56
F623	Open	3 mm	10 mm	4 mm		11.5 mm	1mm	536.000 N	175.000 N	50
F6232rs	Sealed	3 mm	10 mm	4 mm		11.5 mm	1 mm	536.000 N	175.000 N	50
F623zz	Shielded	3 mm	10 mm	4 mm		11.5 mm	1 mm	536.000 N	175.000 N	50

Part Number	Seal Type	Bore Dia	Outer Dia	Width	Flange Outer Dia	Flange Thickness	Dynamic Radial Load	Static Radial Load	Max Speed (X1000 rpm)
MF74	Open	4 mm	7 mm	2 mm	8.2 mm	0.6 mm	264.000 N	92.000N	60
MF742rs	Sealed	4 mm	7 mm	2.5 mm	8.2 mm	0.6 mm	217.000 N	86.000N	60
MF74zz	Shielded	4 mm	7 mm	2.5 mm	8.2 mm	0.6 mm	217.000 N	86.000 N	60
MF84	Open	4 mm	8 mm	2 mm	9.2 mm	0.6 mm	336.000N	113.000 N	56
MF842rs	Sealed	4 mm	8 mm	3 mm	9.2 mm	0.6 mm	336.000 N	113.000 N	56
MF84zz	Shielded	4 mm	8mm	3 mm	9.2 mm	0.6 mm	336.000N	113.000 N	56
F684	Open	4 mm	9 mm	2.5 mm	10.3 mm	0.6 mm	545.000 N	182.000 N	53
F6842rs	Sealed	4 mm	9 mm	4 mm	10.3 mm	1 mm	545.000N	182.000 N	53
F684zz	Shielded	4 mm	9 mm	4 mm	10.3 mm	1 mm	545.000 N	182.000 N	53
MF104	Open	4 mm	10 mm	3 mm	11.2 mm	0.6 mm	604.000 N	218.000 N	48
MF1042rs	Sealed	4 mm	10 mm	4 mm	11.6 mm	0.8mm	604.000 N	218.000 N	48
MF104zz	Shielded	4 mm	10 mm	4 mm	11.6 mm	0.8 mm	604.000 N	218.000 N	48
F694	Open	4 mm	11 mm	4 mm	12.5 mm	1 mm	814.000 N	280.000 N	48
F6942rs	Sealed	4 mm	11 mm	4 mm	12.5 mm	1 mm	814.000 N	280.000 N	48
F694zz	Shielded	4 mm	11 mm	4 mm	12.5 mm	1 mm	814.000 N	280.000 N	48
F604	Open	4 mm	12 mm	4 mm	13.5 mm	1 mm	814.000 N	280.000 N	48
F6042rs	Sealed	4 mm	12 mm	4 mm	13.5 mm	1 mm	814.000 N	280.000 N	48
F604zz	Shielded	4 mm	12 mm	4 mm	13.5 mm	1 mm	814.000 N	280.000 N	48
F624	Open	4 mm	13 mm	5 mm	15 mm	1 mm	1106.000 N	390.000 N	40
F6242rs	Sealed	4 mm	13 mm	5 mm	15 mm	1 mm	1106.000 N	390.000 N	40
F624zz	Shielded	4 mm	13 mm	5 mm	15 mm	1 mm	1106.000 N	390.000 N	40
F634	Open	4 mm	16 mm	5 mm	18 mm	1 mm	1139.000 N	418.000 N	36
F6342rs	Sealed	4 mm	16 mm	5 mm	18 mm	1 mm	1139.000 N	418.000 N	36
F634zz	Shielded	4 mm	16 mm	5 mm	18 mm	1 mm	1139.000 N	418.000 N	36
MF85	Open	5 mm	8 mm	2 mm	9.2 mm	0.6 mm	262.000 N	96.000 N	53
MF852rs	Sealed	5 mm	8mm	2.5 mm	9.2 mm	0.6 mm	185.000N	72.000N	53
MF85zz	Shielded	5 mm	8mm	2.5 mm	9.2 mm	0.6 mm	185.000N	72.000N	53
MF95	Open	5 mm	9 mm	2.5 mm	10.2 mm	0.6 mm	366.000 N	135.000 N	50
MF952rs	Sealed	5 mm	9 mm	3 mm	10.2 mm	0.6 mm	366.000N	135.000 N	50
MF95zz	Shielded	5mm	9 mm	3 mm	10.2 mm	0.6 mm	366.000 N	135.000 N	50

Part Number	Seal Type	Bore Dia	Outer Dia	Width	Flange Outer Dia	Flange Thickness	Dynamic Radial Load	Static Radial Load	Max Speed (X1000 rpm)
MF105	Open	5 mm	10 mm	3 mm	11.2 mm	0.6 mm	366.000 N	135.000 N	50
MF1052rs	Sealed	5 mm	10 mm	4 mm	11.6 mm	0.8 mm	366.000N	135.000 N	50
MF105zz	Shielded	5 mm	10 mm	4 mm	11.6 mm	0.8 mm	366.000N	135.000 N	50
MF1152rs	Sealed	5 mm	11 mm	4 mm	12.6 mm	0.8 mm	609.000N	226.000 N	45
MF115zz	Shielded	5 mm	11 mm	4 mm	12.6 mm	0.8 mm	609.000N	226.000 N	45
MF115	Open	5 mm	11 mm	4 mm	12.6 mm	0.8 mm	609.000 N	226.000 N	45
F685	Open	5 mm	11 mm	3 mm	12.5 mm	0.8 mm	609.000N	226.000 N	45
F6852rs	Sealed	5 mm	11 mm	5 mm	12.5 mm	1 mm	609.000 N	226.000 N	45
F685zz	Shielded	5 mm	11 mm	5mm	12.5 mm	1 mm	609.000N	226.000 N	45
F695	Open	5 mm	13 mm	4 mm	15 mm	1mm	916.000 N	346.000 N	43
F6952rs	Sealed	5 mm	13 mm	4 mm	15 mm	1 mm	916.000 N	346.000 N	43
F695zz	Shielded	5 mm	13 mm	4 mm	15 mm	1 mm	916.000 N	346.000 N	43
F605	Open	5 mm	14 mm	5 mm	16 mm	1 mm	1130.000 N	406.000 N	40
F6052rs	Sealed	5 mm	14 mm	5 mm	16 mm	1mm	1130.000 N	406.000 N	40
F605zz	Shielded	5 mm	14 mm	5 mm	16 mm	1mm	1130.000 N	406.000 N	40
F625	Open	5 mm	16mm	5 mm	18 mm	1 mm	1470.000 N	540.000 N	36
F6252rs	Sealed	5 mm	16mm	5 mm	18 mm	1 mm	1470.000 N	540.000 N	36
F625zz	Shielded	5 mm	16mm	5mm	18 mm	1 mm	1470.000 N	540.000 N	36
F635	Open	5 mm	19 mm	6mm	22 mm	1.5 mm	1986.000 N	717.000 N	32
F6352rs	Sealed	5 mm	19 mm	6mm	22 mm	1.5 mm	1986.000 N	717.000 N	32
F635zz	Shielded	5 mm	19 mm	6mm	22 mm	1.5 mm	1986.000 N	717.000 N	32
MF106	Open	6 mm	10 mm	2.5 mm	11.2 mm	0.6 mm	422.000N	174.000 N	45
MF1062rs	Sealed	6 mm	10 mm	3 mm	11.2 mm	0.6 mm	422.000N	174.000 N	45
MF106zz	Shielded	6 mm	10 mm	3 mm	11.2 mm	0.6 mm	422.000 N	174.000 N	45
MF126	Open	6 mm	12 mm	3 mm	13.2 mm	0.6 mm	609.000 N	236.000 N	43
MF1262rs	Sealed	6 mm	12 mm	4 mm	13.6 mm	0.8 mm	609.000N	236.000 N	43
MF126zz	Shielded	6mm	12 mm	4 mm	13.6 mm	0.8 mm	609.000 N	236.000 N	43
F686	Open	6mm	13 mm	3.5 mm	15 mm	1 mm	920.000N	354.000 N	40
F6862rs	Sealed	6 mm	13 mm	5 mm	15 mm	1.1 mm	920.000 N	354.000 N	40
F686zz	Shielded	6 mm	13 mm	5 mm	15 mm	1.1 mm	920.000 N	354.000 N	40

Part Number	Seal Type	Bore Dia	Outer Dia	Width	Flange Outer Dia	Flange Thickness	Dynamic Radial Load	Static Radial Load	Max Speed (X1000 rpm)
F696	Open	6mm	15 mm	5 mm	17 mm	1.2 mm	1139.000 N	418.000 N	40
F6962rs	Sealed	6mm	15 mm	5 mm	17 mm	1.2 mm	1139.000 N	418.000 N	40
F696zz	Shielded	6mm	15 mm	5 mm	17 mm	1.2 mm	1139.000 N	418.000 N	40
F606	Open	6mm	17 mm	6mm	19 mm	1.2 mm	1924.000 N	677.000 N	38
F6062rs	Sealed	6 mm	17 mm	6mm	19 mm	1.2 mm	1924.000 N	677.000 N	38
F606zz	Shielded	6 mm	17 mm	6mm	19 mm	1.2 mm	1924.000 N	677.000 N	38
F626	Open	6 mm	19 mm	6mm	22 mm	1.5 mm	1986.000 N	717.000 N	32
F6262rs	Sealed	6mm	19 mm	6mm	22 mm	1.5 mm	1986.000 N	717.000 N	32
F626zz	Shielded	6mm	19 mm	6mm	22 mm	1.5 mm	1986.000 N	717.000 N	32
MF117	Open	7 mm	11 mm	2.5 mm	12.2 mm	0.6 mm	387.000 N	162.000 N	43
MF1172rs	Sealed	7 mm	11 mm	3 mm	12.2 mm	0.6 mm	387.000N	162.000 N	43
MF117zz	Shielded	7 mm	11 mm	3 mm	12.2 mm	0.6 mm	387.000N	162.000 N	43
MF137	Open	7 mm	13 mm	3 mm	14.2 mm	0.6 mm	460.000N	221.000 N	40
MF1372rs	Sealed	7 mm	13 mm	4 mm	14.6 mm	0.8 mm	460.000 N	221.000 N	40
MF137zz	Shielded	7 mm	13 mm	4 mm	14.6 mm	0.8 mm	460.000N	221.000 N	40
F687	Open	7 mm	14 mm	3.5 mm	16mm	1 mm	997.000N	410.000 N	40
F6872rs	Sealed	7 mm	14 mm	5 mm	16mm	1.1 mm	997.000N	410.000 N	40
F687zz	Shielded	7 mm	14 mm	5mm	16mm	1.1 mm	997.000N	410.000 N	40
F697	Open	7 mm	17 mm	5 mm	19 mm	1.2 mm	1364.000 N	575.000 N	36
F6972rs	Sealed	7 mm	17 mm	5 mm	19 mm	1.2 mm	1364.000 N	575.000 N	36
F697zz	Shielded	7 mm	17 mm	5 mm	19 mm	1.2 mm	1364.000 N	575.000 N	36
F607	Open	7 mm	19 mm	6mm	22 mm	1.5 mm	1986.000 N	717.000 N	36
F6072rs	Sealed	7 mm	19 mm	6 mm	22 mm	1.5 mm	1986.000 N	717.000 N	36
F607zz	Shielded	7 mm	19 mm	6mm	22 mm	1.5 mm	1986.000 N	717.000 N	36
F627	Open	7 mm	22 mm	7 mm	25 mm	1.5 mm	2794.000 N	1103.000 N	30
F6272rs	Sealed	7 mm	22 mm	7 mm	25 mm	1.5 mm	2794.000 N	1103.000 N	30
F627zz	Shielded	7 mm	22 mm	7 mm	25 mm	1.5 mm	2794.000 N	1103.000N	30
MF128	Open	8mm	12 mm	2.5 mm	13.2 mm	0.6 mm	462.000N	219.000 N	40
MF1282rs	Sealed	8mm	12 mm	3.5 mm	13.6 mm	0.8 mm	462.000 N	219.000 N	40
MF128zz	Shielded	8 mm	12 mm	3.5 mm	13.6 mm	0.8 mm	462.000 N	219.000 N	40

Part Number	Seal Type	Bore Dia	Outer Dia	Width	Flange Outer Dia	Flange Thickness	Dynamic Radial Load	Static Radial Load	Max Speed (X1000 rpm)
MF148	Open	8mm	14 mm	3.5 mm	15.6 mm	0.8 mm	695.000 N	309.000 N	38
MF1482rs	Sealed	8 mm	14 mm	4 mm	15.6 mm	0.8 mm	695.000 N	309.000 N	38
MF148zz	Shielded	8 mm	14 mm	4 mm	15.6 mm	0.8 mm	695.000N	309.000 N	38
F688	Open	8 mm	16mm	4 mm	18 mm	1mm	1064.000 N	474.000 N	36
F6882rs	Sealed	8 mm	16 mm	5mm	18mm	1.1 mm	1064.000 N	474.000 N	36
F688zz	Shielded	8mm	16 mm	5mm	18mm	1.1 mm	1064.000 N	474.000 N	36
F698	Open	8mm	19 mm	6mm	22 mm	1.5 mm	1902.000 N	734.000 N	36
F6982rs	Sealed	8mm	19 mm	6mm	22 mm	1.5 mm	1902.000 N	734.000 N	36
F698Zzz	Shielded	8mm	19 mm	6mm	22 mm	1.5 mm	1902.000 N	734.000 N	36
F608	Open	8 mm	22 mm	7 mm	25mm	1.5 mm	2799.000 N	1103.000N	34
F6082rs	Sealed	8 mm	22 mm	7 mm	25mm	1.5 mm	2799.000 N	1103.000 N	34
F608zz	Shielded	8 mm	22 mm	7 mm	25mm	1.5 mm	2799.000 N	1103.000 N	34
F679	Open	9mm	14 mm	3mm	15.5 mm	0.8 mm	781.000N	374.000 N	36
F6792rs	Sealed	9 mm	14 mm	4.5 mm	15.5 mm	0.8 mm	781.000 N	374.000 N	36
F679zz	Shielded	9mm	14 mm	4.5 mm	15.5 mm	0.8 mm	781.000 N	374.000 N	36
F689	Open	9 mm	17 mm	4mm	19 mm	1mm	1128.000 N	534.000 N	36
F6892rs	Sealed	9 mm	17 mm	5mm	19 mm	1.1 mm	1128.000 N	534.000 N	36
F689zz	Shielded	9 mm	17 mm	5mm	19 mm	1.1 mm	1128.000 N	534.000 N	36
F699	Open	9mm	20 mm	6mm	23 mm	1.5 mm	2097.000 N	865.000 N	34
F6992rs	Sealed	9 mm	20 mm	6mm	23mm	1.5 mm	2097.000 N	865.000 N	34
F699zz	Shielded	9 mm	20 mm	6mm	23mm	1.5 mm	2097.000 N	865.000 N	34
F609	Open	9 mm	24 mm	7mm	27mm	1.5 mm	2853.000 N	1155.000N	32
F6092rs	Sealed	9 mm	24 mm	7mm	27 mm	1.5 mm	2853.000 N	1155.000 N	32
F609zz	Shielded	9 mm	24 mm	7 mm	27 mm	1.5 mm	2853.000 N	1155.000N	32
