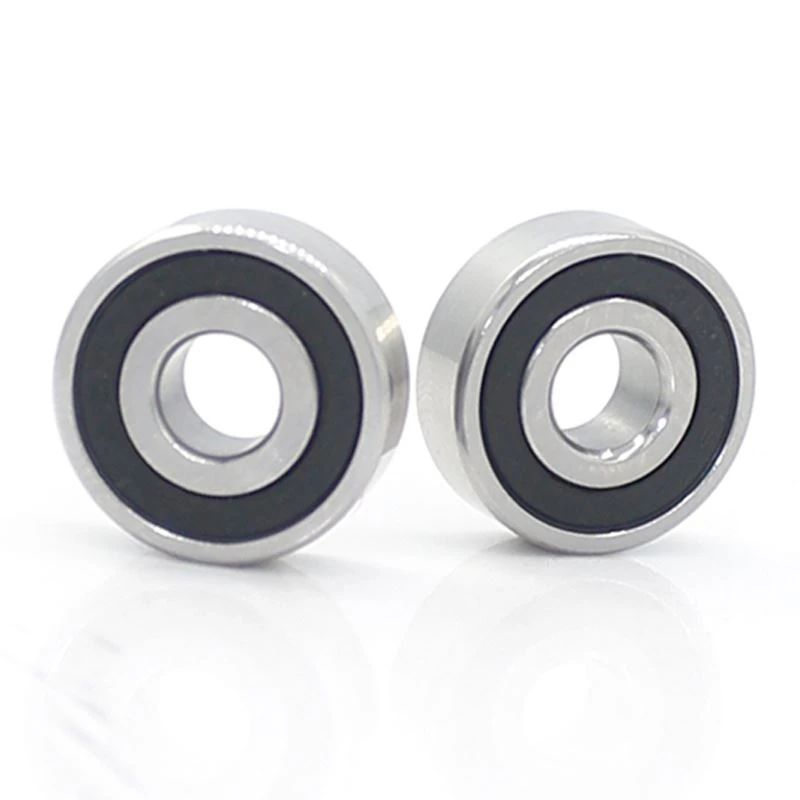

S606-2RS Stainless Steel Bearing: A High-Speed, Quiet Bearing For Miniature Motors

If you are looking for a reliable bearing for brushless DC motors (BLDC), fan motors, or water pump motors, the S606-2RS (6×17×6mm) is a proven and widely adopted model. It delivers an excellent balance of high speed, low noise, corrosion resistance, and long service life - ideal for precision miniature motor applications.

The S606-2RS is one of the most common bearing choices in the miniature motor industry. Typical applications include:

Brushless DC Motors (BLDC) – supports high-speed commutation with low friction.

Fan Motors – used in cooling fans and air purifiers, prioritizing quiet operation.

Water Pump Motors – excellent corrosion resistance for wet environments.

Vibration Motors – handles high-frequency vibration while maintaining stability.

Stepper Motors and Servo Motors – meets demands for positioning accuracy and dynamic response.

It is widely used in consumer electronics, smart home devices, and industrial automation equipment.

Addressing Key Customer Concerns

1. Is the speed high enough? With precision raceway design and high-quality grease, the S606-2RS offers a limiting speed of up to 38,000 rpm (grease lubricated). It performs reliably in real-world applications at 15,000–28,000 rpm, providing smooth operation and fast dynamic response.

2. How quiet is it? Optimized raceway finishing and clearance control keep no-load noise typically between 20-28 dB. Many fan motor manufacturers report noticeable noise reduction in the final product, making it a strong choice for low-noise applications.

3. What is the service life? The combination of 440C stainless steel and double rubber seals significantly extends bearing life. Under normal load and proper lubrication, lab-tested continuous running life ranges from 8,000 to 12,000 hours - substantially longer than standard carbon steel 606 bearings in humid conditions.

4. Can it run continuously for long periods? Yes. Within recommended load limits, the S606-2RS supports 24-hour continuous operation. It is commonly used in water pumps and circulation systems with minimal temperature rise or performance degradation.

Why Choose S606-2RS?

Superior corrosion resistance compared to carbon steel bearings

Effective protection from dust and moisture with 2RS seals

Consistent quality through 100% speed, noise, and sealing inspection before shipment

Good availability for samples and bulk orders

Selection Tip: Choose S606-2RS for humid or splash-prone environments. For even lower noise, pair it with low-noise grease.

Frequently Asked Questions (FAQ)

Q1: What are the advantages of S606-2RS over regular carbon steel 606 bearings?

A: The stainless steel construction offers much better corrosion resistance, making it ideal for water pump motors and humid environments where carbon steel bearings tend to rust and fail prematurely.

Q2: Is it suitable for fan motors?

A: Yes. Its low noise and smooth running characteristics are exactly what fan motor applications require.

Q3: Can it be used in servo or stepper motors for high-precision positioning?

A: Absolutely. The precision raceway design provides the low clearance and rotational accuracy needed for servo and stepper motors.

Summary

The S606-2RS stainless steel bearing is a practical, high-performance solution for miniature motors. It excels in high-speed, quiet, and demanding environments. We recommend testing samples under your specific operating conditions (speed, load, and environment) to ensure optimal results.
